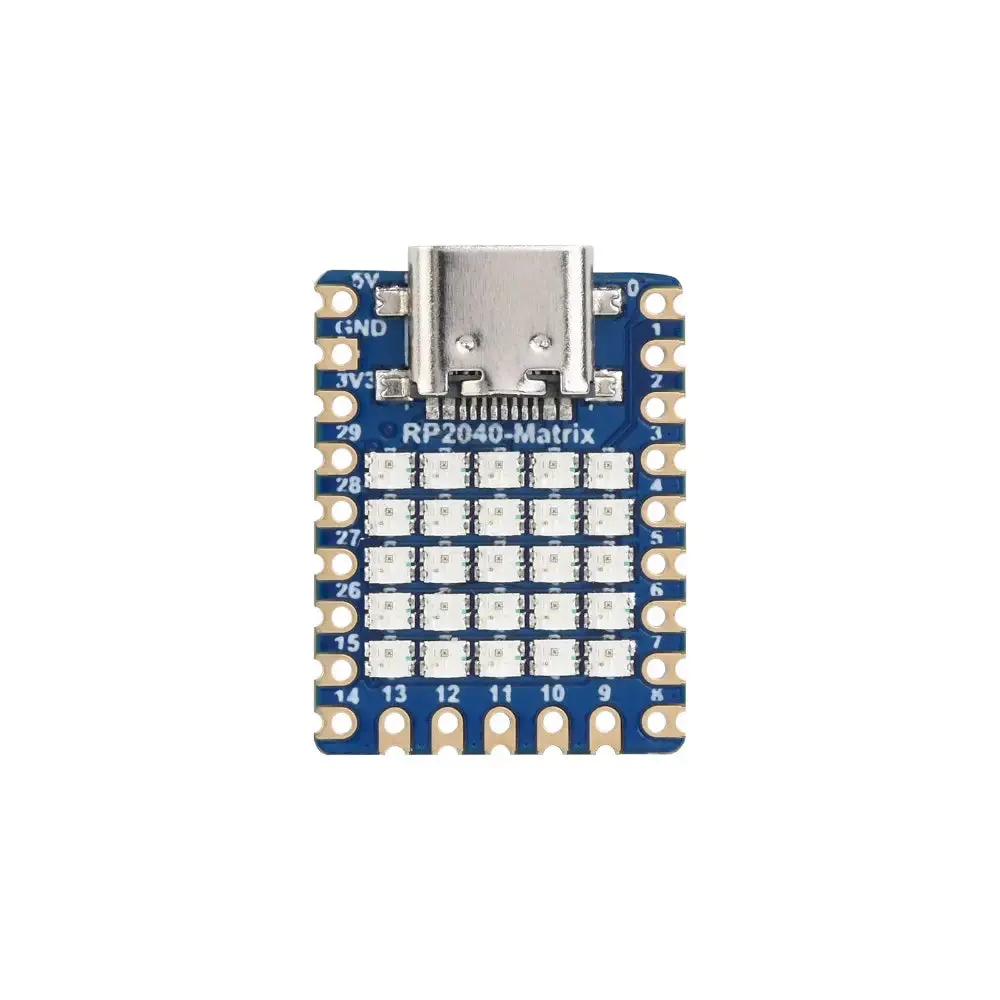

Waveshare RP2040 Matrix Dev Board — Integrated 5× RGB LED Matrices

Description

Description

• Waveshare RP2040-Matrix Development Board, Onboard 5 RGB LED Matrix, Based on RP2040
• Features dual-core Arm Cortex M0+ processor for versatility
• Offers onboard 5 RGB LED matrix for vibrant displays
• Supports C++, MicroPython, and Arduino programming
• Includes USB Type-C for easy connectivity
• Provides 20 multifunction GPIO pins for expansion

The Waveshare RP2040-Matrix Development Board, Onboard 5 RGB LED Matrix, Based on RP2040 is a versatile microcontroller unit featuring a dual-core Arm Cortex M0+ processor. It is designed for flexible development and integration, offering a colorful lighting display through its onboard 5 RGB LED matrix. The board supports multiple programming languages, including C++, MicroPython, and Arduino, and provides comprehensive development resources and tutorials. It includes a USB Type-C connector, BOOT and RESET buttons, and supports drag-and-drop programming via USB mass storage. The castellated module design facilitates direct soldering to carrier boards.

View moreWhat’s Included

• 1x Waveshare RP2040-Matrix Development Board, Onboard 5 RGB LED Matrix, Based on RP2040

Links

Website

Waveshare RP2040-Matrix Development Board, Onboard 5×5 RGB LED Matrix, Based On RP2040 – RP2040 Matrix Wiki

Specifications

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor with a flexible clock running up to 133 MHz
• 264KB of SRAM and 2MB of onboard Flash memory
• Onboard 5×5 RGB LED matrix for colorful lighting display
• Castellated module allows soldering directly to carrier boards
• USB 1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 20 multi-function GPIO pins
• 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, 16 controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 Programmable I/O (PIO) state machines for custom peripheral support
• USB Type-C connector
• BOOT button for entering download mode
• RESET button
• RT9013-33GB 500mA low dropout, low noise, ultra-fast LDO
• W25Q16JVUXIQ 2MB NOR-Flash
