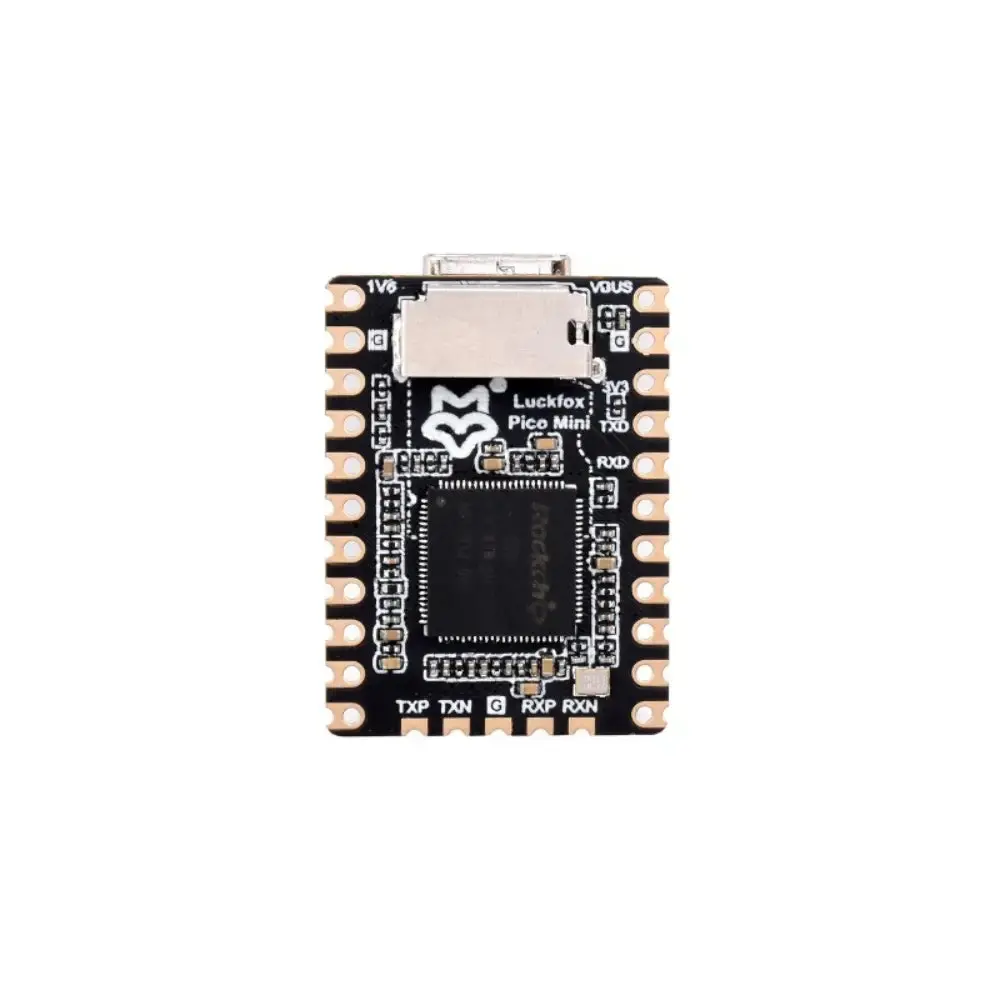

- Waveshare Luckfox Pico Mini RV1103 Linux Micro Dev Board, ARM Cortex-A7/RISC-V MCU/NPU/ISP (no Flash w/ Headers)
- Integrates ARM Cortex-A7 and RISC-V MCU
- Features Rockchip NPU for high precision
- Supports 4-Megapixel HDR image processing
- Offers USB Type-C and TF card connectivity
- Includes 17 GPIO pins and MIPI CSI interface
The Waveshare Luckfox Pico Mini RV1103 Linux Micro Dev Board, ARM Cortex-A7/RISC-V MCU/NPU/ISP (no Flash w/ Headers) integrates advanced processing capabilities with an ARM Cortex-A7 core and a RISC-V MCU. It features a Rockchip NPU for high precision computing and an ISP supporting 4-Megapixel image processing with enhancements like HDR and noise reduction. The board is designed for efficient development, offering a TF card slot, camera interface, and USB Type-C connectivity. It supports intelligent encoding and adaptive stream saving, making it suitable for diverse applications.
- 1x Waveshare Luckfox Pico Mini RV1103 Linux Micro Dev Board, ARM Cortex-A7/RISC-V MCU/NPU/ISP (no Flash w/ Headers)
Website
- Processor: Cortex A7 @ 1.2GHz + RISC-V
- NPU: 0.5 TOPS, supports int4, int8, and int16
- ISP: Input 4M @ 30fps (Max)
- Memory: 64MB DDR2
- USB: 2.0 Host/Device
- Camera: MIPI CSI 2-lane
- GPIO: 17 GPIO pins
- Default Storage: TF card (Not included)
- Onboard Type-C port
- Built-in Rockchip 4th generation NPU with high computing precision
- Supports int4, int8, and int16 hybrid quantization
- Built-in 3rd generation ISP3.2, supports 4-Megapixel
- Includes HDR, WDR, and multi-level noise reduction algorithms
- Supports intelligent encoding mode and adaptive stream saving
- Built-in RISC-V MCU for low power consumption and fast start-up
- Built-in 16-bit DRAM DDR2
- Integrated with POR, audio codec, and MAC PHY
- Integrates TF Card Slot and Camera Interface
- SLC NAND FLASH
