Description
Description

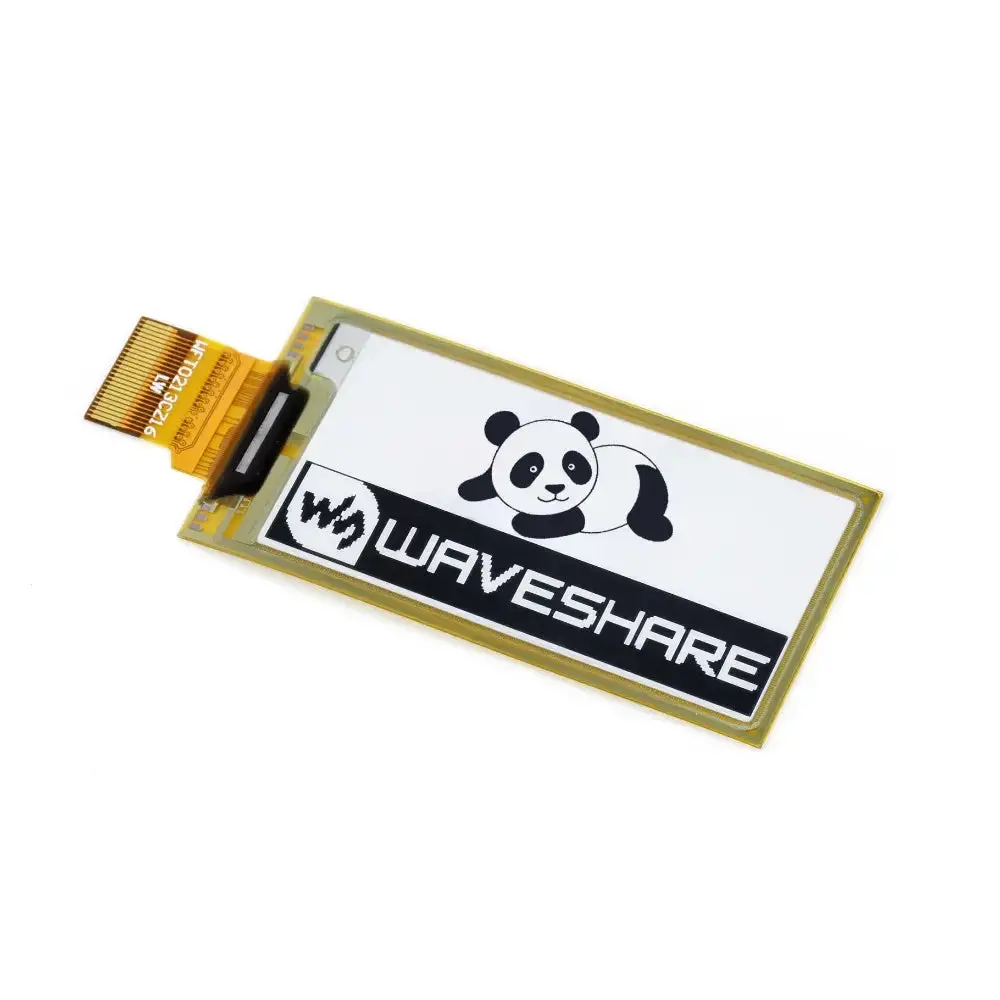

- Waveshare 212×104, 2.13″ Flexible E-Ink Raw Display Panel
- Features flexible e-paper panel
- Supports partial refresh
- Offers wide viewing angle >170°
- Optimizes low power consumption
- Operates via SPI interface
The Waveshare 212×104, 2.13″ Flexible E-Ink Raw Display Panel is a versatile display solution featuring a flexible e-paper panel with a resolution of 212×104 pixels. It supports partial refresh and offers a wide viewing angle of over 170 degrees, providing a paper-like reading experience under ambient light conditions. This display is ideal for applications in industrial instruments and smart wearable devices due to its low power consumption and ability to retain the last displayed content without power. The panel operates via an SPI interface and does not include a driver board.
- 1x Waveshare 212×104, 2.13″ Flexible E-Ink Raw Display Panel
- 59.2 x 29.2 x 0.3 mm
- Resolution: 212×104
- Viewing Angle: Greater than 170°
- Display Color: Black and White
- Grey Scale: 2 levels
- Communication: SPI
- Display Panel: E-paper
- Experience: Paper-like
- Environment: Requires ambient light
- Display Type: Passively reflective
- Refreshing: Supports partial refresh
- Panel Feature: Flexible
- Operating Voltage: 3.3V
- Interface: 3-wire SPI, 4-wire SPI
- Full Refresh Time: 2 seconds
- Partial Refresh Time: 0.3 seconds
- Dot Pitch: 0.229 × 0.228 mm
- Refresh Power: 26.4 mW (typical)
- Standby Current: Less than 0.01 µA
- Advantages of E-Ink: Utilizes microcapsule electrophoretic technology, requires no backlight, features nearly 180° viewing angle
