Description

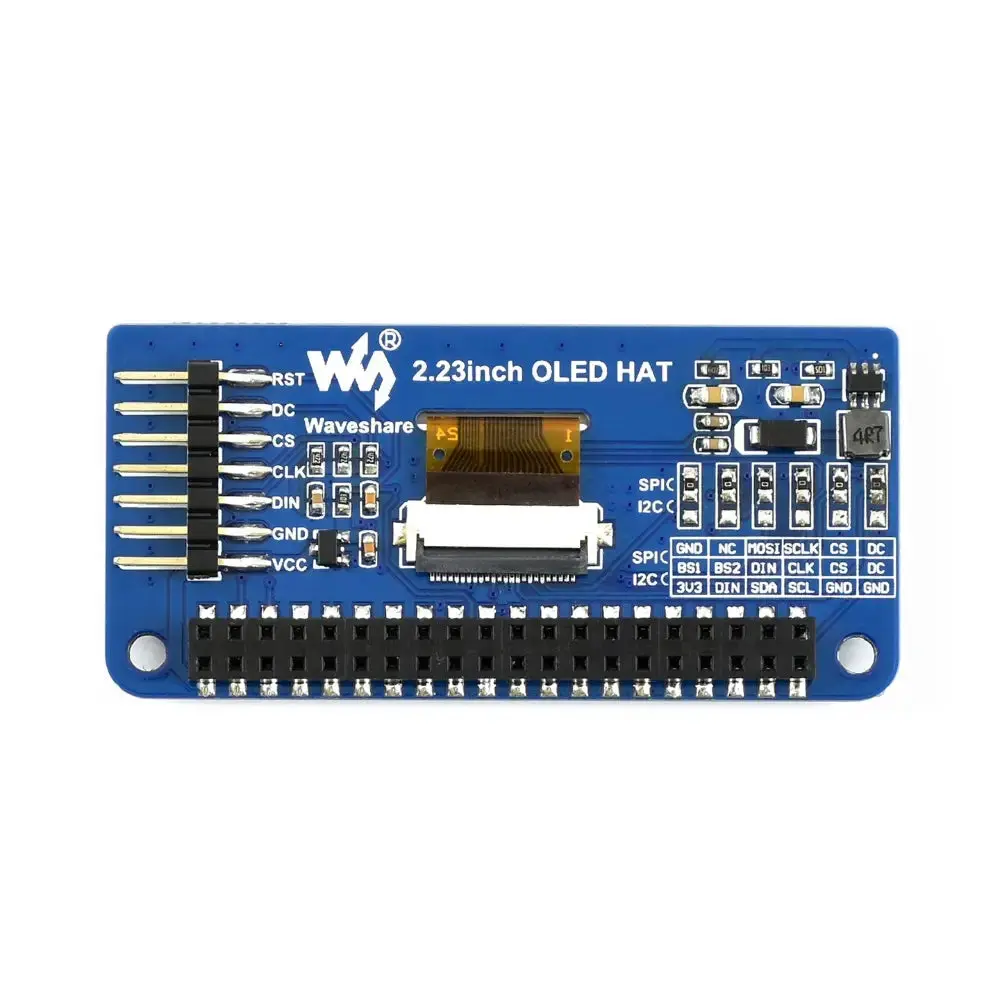

- Waveshare 128×32, 2.23″ OLED Display HAT for Raspberry Pi
- Features compact 128×32 resolution
- Includes SSD1305 driver support
- Supports SPI/I2C communication
- Comes with GPIO extension header
- Offers manuals for Raspberry Pi, Jetson
The Waveshare 128×32, 2.23″ OLED Display HAT for Raspberry Pi features a compact design with a 128×32 pixel resolution and an embedded SSD1305 driver. It supports communication via SPI or I2C interfaces, making it an ideal choice for adding a control interface to Raspberry Pi series boards and Jetson Nano. The display includes a standard 40PIN GPIO extension header and offers development resources and manuals for various host boards such as Arduino and STM32.
- 1x Waveshare 128×32, 2.23″ OLED Display HAT for Raspberry Pi
- 1x RPi screws pack (2 pieces)
- Diagonal: 2.23 inches
Website
- Driver: SSD1305
- Interface: SPI / I2C
- Display color: white
- Resolution: 128×32
- Viewing angle: greater than 160°
- Power supply voltage: 3.3V/5V
- Logic level: 3.3V
- Standard Raspberry Pi 40-pin GPIO extension header, supports Raspberry Pi series boards and Jetson Nano
- Optional interfaces: SPI (default) or I2C, configured via onboard resistor
- Includes control pins for host boards like Arduino/STM32
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
