Description
Description
- Waveshare VL53L1X ToF Distance Ranging Sensor, Ranging Up to 4m
- Utilizes advanced FlightSense technology
- Measures distances up to 4 meters
- Supports fast 50 Hz frequency
- Operates via I2C interface
- Ideal for drones and smart buildings

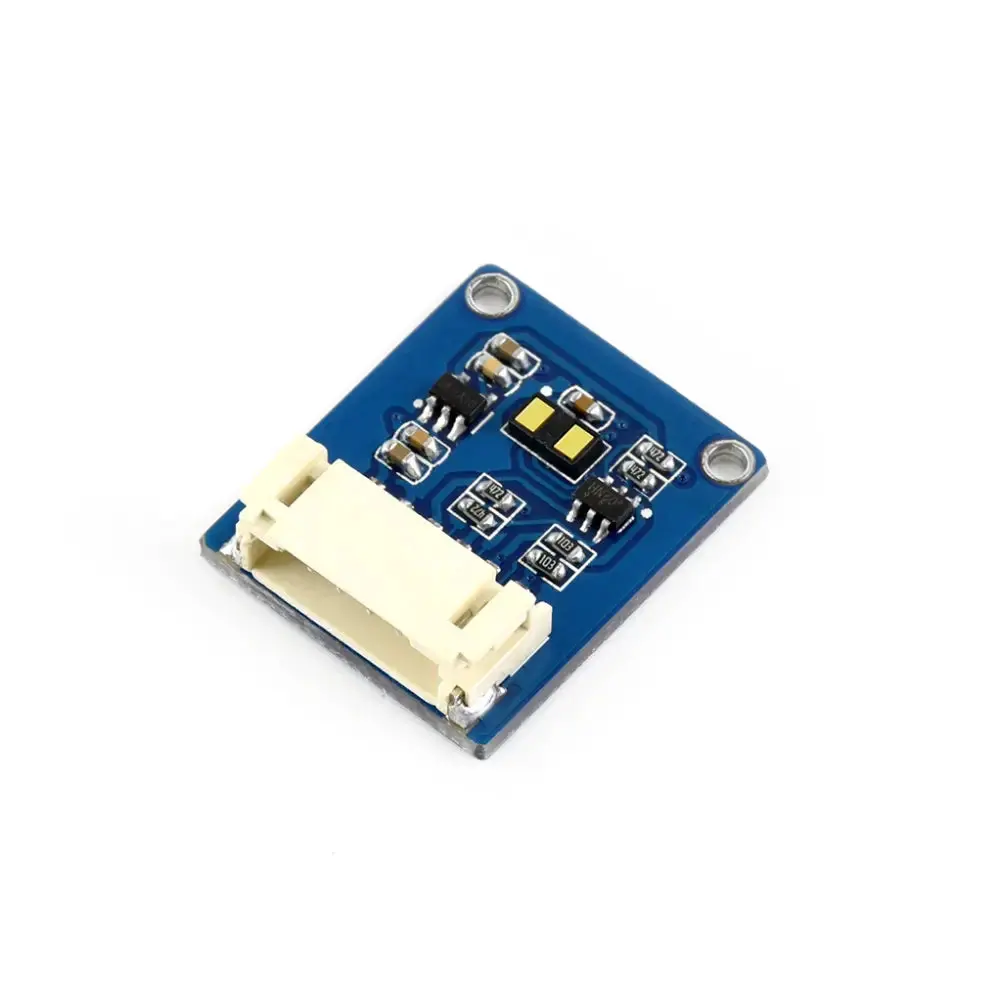

The Waveshare VL53L1X ToF Distance Ranging Sensor, Ranging Up to 4m is a sophisticated Time-of-Flight module utilizing ST’s third-generation FlightSense technology. It offers precise distance measurement up to 4 meters with a rapid frequency of up to 50 Hz, making it suitable for various applications. The sensor operates via an I2C interface and is designed for low power consumption.
This sensor is ideal for mobile robots, drones, smart buildings, and cameras, providing functionalities such as obstacle detection, user detection, and autofocus enhancement. It is compatible with both 3.3V and 5V systems.
- 1x Waveshare VL53L1X ToF Distance Ranging Sensor, Ranging Up to 4m
- 1x VL53L1X distance sensor
- 1x PH2.0 6pin wire 20cm
- 20 x 24 mm
Website
- I2C communication interface with module control via IO pins
- Onboard voltage translator compatible with 3.3V/5V
- Operating voltage: 3.3V/5V
- Ranging distance: 40 ~ 4000mm
- Ranging accuracy: ±5%
- Minimum ranging time: 20ms (short distance mode), 33ms (medium/long distance mode)
- Field of view: 27°
- Laser wavelength: 940nm
- Operating temperature: -20 ~ 80°C
- Applications include mobile robots, user detection for devices, drones, smart buildings, and cameras
