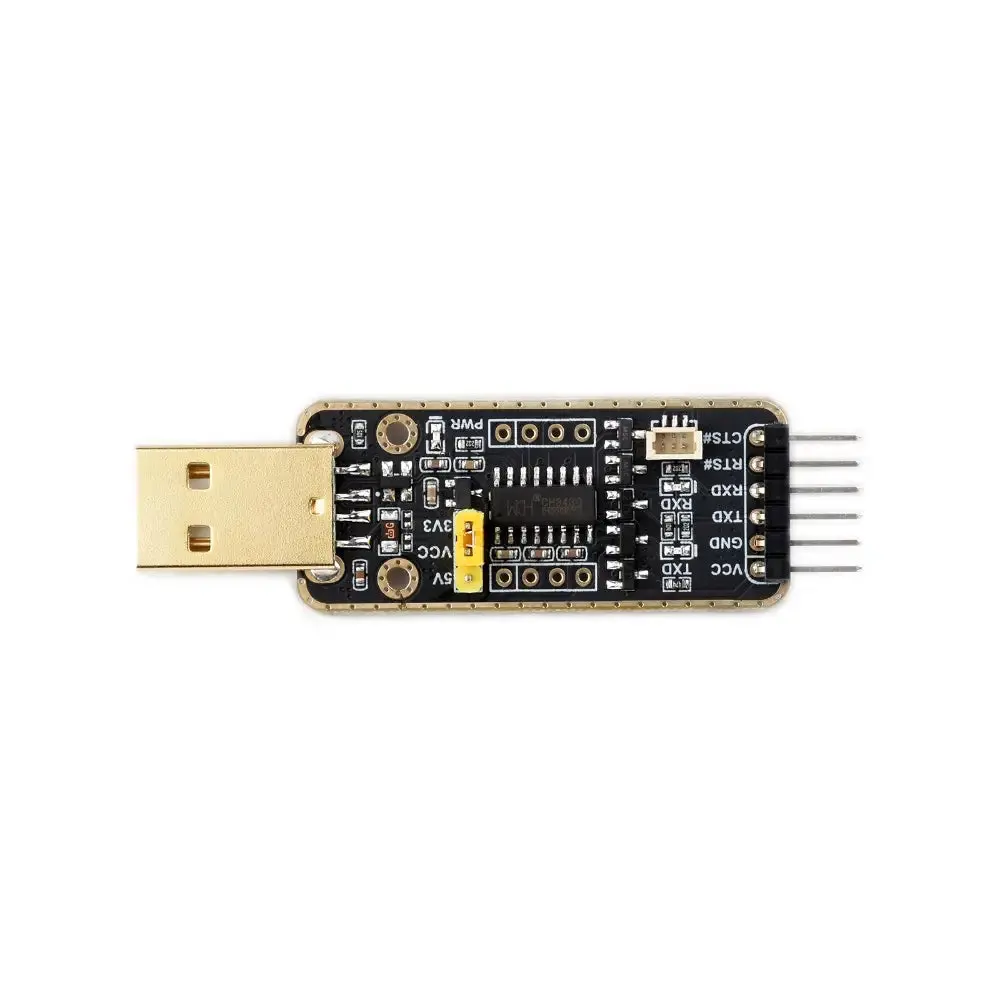

- Waveshare USB to UART Debugger Module for Raspberry Pi 5, Type-A Port, Onboard UART Connector
- Supports high baud rate up to 6Mbps
- Ensures safe use with multiple protection circuits
- Compatible with Mac, Linux, Android, Windows
- Features onboard 3.3V and 5V TTL level switch
- Built with durable black immersion gold process
The Waveshare USB to UART Debugger Module for Raspberry Pi 5, Type-A Port, Onboard UART Connector is engineered for stable and versatile communication with Raspberry Pi 5. It supports high baud rate transmission and multiple connection methods, including direct connections to the PI5 UART debug connector and GPIO UART interface. Compatible with Mac, Linux, Android, and Windows systems, it features onboard protection circuits against overcurrent, overvoltage, surges, and static. The module is powered via USB and includes a TTL level switch for selecting communication levels, ensuring safe and reliable operation.
- 1x Waveshare USB to UART Debugger Module for Raspberry Pi 5, Type-A Port, Onboard UART Connector
- 1x Pi UART Debugger
- 1x 6-pin squid cable
- 1x SH1.0 connector to 3-pin cable ~100mm
- 1x Dual SH1.0 connector 3-pin cable ~100mm
Website
- Host interface: USB
- Device interface: UART
- Communication range: 50 bps to 6 Mbps
- USB device interface: USB Type-A connector with self-recovery fuse and ESD protection
- UART interface: 6-pin right-angle pin header and 3-pin connector with IO protection diode
- Multiple protection circuit for safety and stability
- Onboard self-recovery fuse and transient voltage suppressor to prevent overcurrent and overvoltage, enhancing shock resistance
- Onboard IO protection circuit for anti-surge and anti-static, ensuring stable and safe communication performance
- Compatible with Mac, Linux, Android, Windows 7/8.1/10/11
- Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level
- Supports 3.3V/5V output; module powered by USB, with onboard jumper shorted to 3.3V or 5V as needed
- Double-sided black immersion gold process for durability and aesthetic appeal
- Indicator description: PWR (Power indicator), RXD (Receiving indicator), TXD (Sending indicator)
- Pinouts definition: VCC (5V or 3.3V output for external device), GND (Ground), TXD (Connects to MCU.RXD), RTS# (Connects to MCU.CTS#)
