Description
Description
- Waveshare PCIe to USB 3.2 Gen1 HAT for Raspberry Pi 5, 4x High Speed USB Ports, HAT + Standard
- Enhances with four high-speed USB 3.2 Gen1 ports
- Connects driver-free via 16PIN cable
- Monitors power real-time with onboard chip
- Supports USB power control via software
- Includes reserved vent for cooling fan

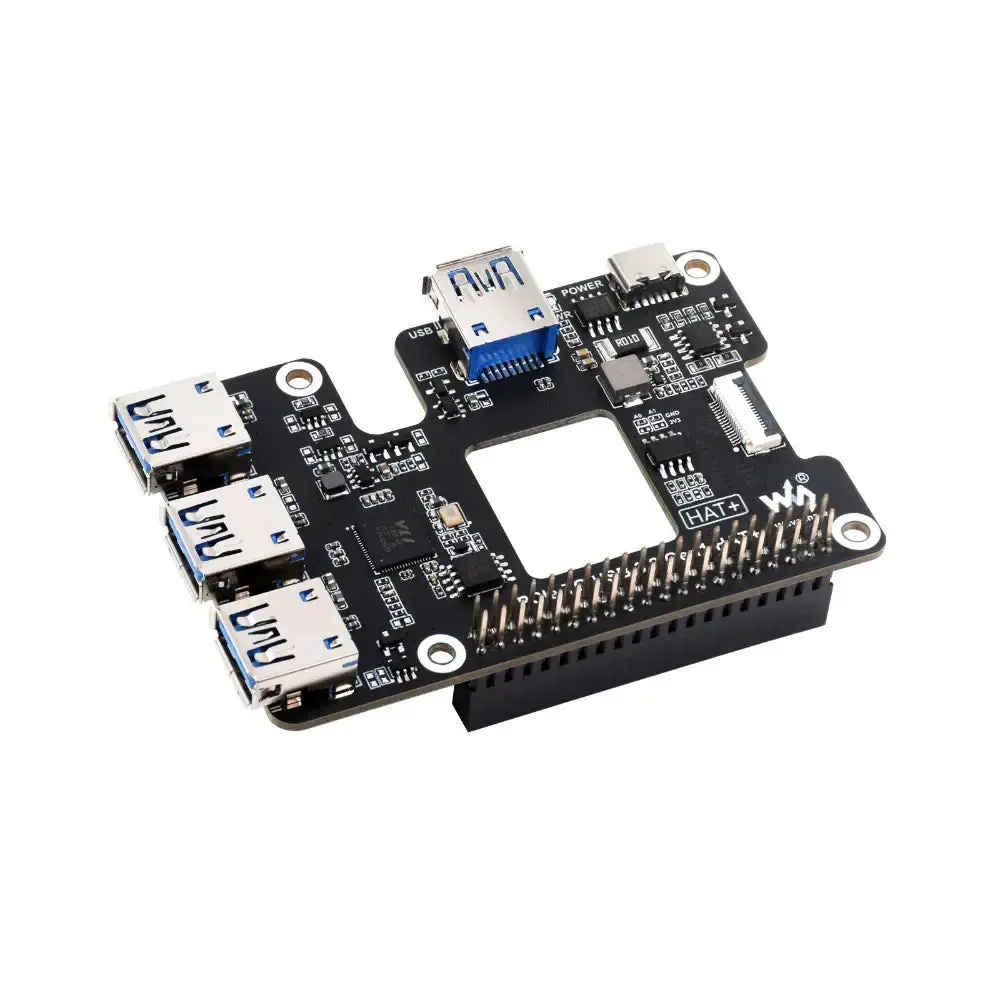

The Waveshare PCIe to USB 3.2 Gen1 HAT for Raspberry Pi 5, 4x High Speed USB Ports, HAT + Standard enhances the connectivity of the Raspberry Pi 5 by extending its PCIe interface to four high-speed USB 3.2 Gen1 ports. This driver-free, plug-and-play device connects via a 16PIN cable, facilitating the connection of additional peripherals.
Equipped with an onboard power monitoring chip and EEPROM, it allows real-time monitoring of power status and supports USB port power control through software. The design includes a reserved airflow vent for a cooling fan, ensuring stable operation of the Raspberry Pi 5.
- 1x Waveshare PCIe to USB 3.2 Gen1 HAT for Raspberry Pi 5, 4x High Speed USB Ports, HAT + Standard
- 1x Standoff pack
- 1x 16p-cable-40mm
Website
- Designed for Raspberry Pi 5
- Driver-free, plug and play
- Connects via 16-pin cable
- Based on 16-pin PCIe interface
- Extends to four high-speed USB 3.2 Gen1 ports
- Onboard power monitoring chip and EEPROM
- Real-time power status monitoring
- Supports USB port power control via software
- Reserved airflow vent for cooling fan
- Raspberry Pi GPIO header
- USB 3.2 Gen1 expanded ports (USB1~USB4)
- Power port for external Type-C 5V DC power supply
- Power indicator (PWR LED)
- Flash chip (MX25L3206)
- PCIe to USB 3.2 Gen1 HUB (VL805)
- PCIe interface for connecting to Raspberry Pi 5
