Description
- Waveshare RM502Q-AE 5G HAT for Raspberry Pi, Quad Antennas LTE-A, Multi Band, 5G/4G/3G (EU)
- Supports 5G, 4G, and 3G connections
- Offers USB 3.1 port for fast 5G communication
- Compatible with Windows, Linux, and Android
- Features dual SIM card slots and quad antennas
- Integrates multi-constellation GNSS support
The Waveshare RM502Q-AE 5G HAT for Raspberry Pi, Quad Antennas LTE-A, Multi Band, 5G/4G/3G (EU) is a sophisticated module designed to enhance networking capabilities by supporting 5G, 4G, and 3G connections. It is engineered to integrate seamlessly with various operating systems, including Windows, Linux, and Android, thanks to its extensive network protocol support and multi-driver compatibility. The module is equipped with a USB 3.1 port, which is also compatible with USB 2.0, facilitating high-speed 5G communication. Additionally, it features a standard M.2 B KEY slot that accommodates different 5G modules, particularly the RM502Q-AE series.
This HAT is designed for ease of use and versatility, featuring onboard UART, PWR, and RST control pins, a built-in voltage level translator, and a USB-C connector for a standalone power supply. It includes a power supply on/off switch, a reset button, and an LED indicator to simplify monitoring and operation. The dual SIM card slots support single standby mode, switchable via AT command, and the high-efficiency power supply circuit can deliver up to 3A output current.
The module is compatible with Raspberry Pi series and Jetson Nano, offering a stackable design for additional HATs and a high-speed cooling fan for effective heat dissipation. It supports cloud communication and multi-constellation high-precision GNSS, including GPS, Beidou, Glonass, and Galileo. The HAT is equipped with a Raspberry Pi GPIO header, DIP switches for power control and reset pins, and a USB Type-C port for stable power supply. It also supports quad antennas and includes a fan header for a 5V cooling fan power supply.

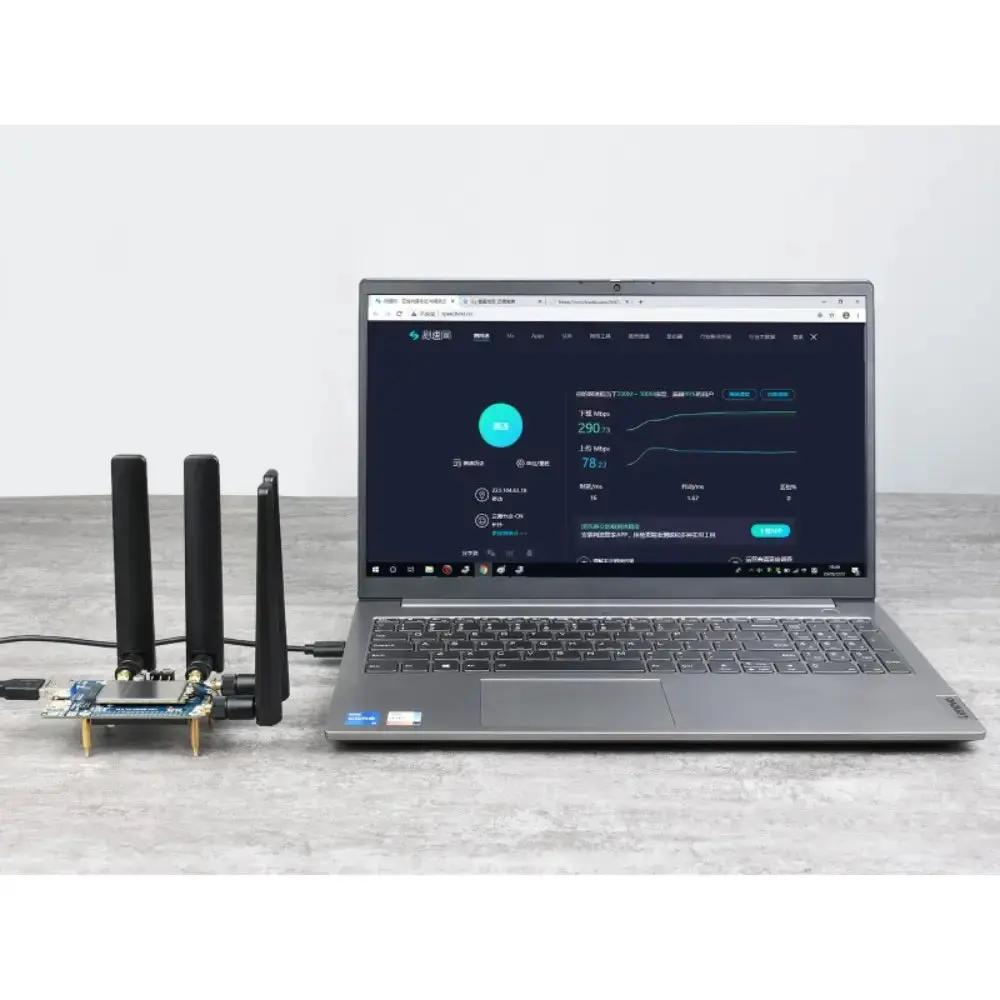

Optional cases are available to accommodate various installation methods, making the HAT suitable for diverse applications such as industrial use. It can be utilized to create a 5G wireless router or for 5G live streaming, providing users with a wide range of possibilities.
- 1x Waveshare RM502Q-AE 5G HAT for Raspberry Pi, Quad Antennas LTE-A, Multi Band, 5G/4G/3G (EU)
- 4x Antenna
- 4x IPEX adapter cable
- 1x 2*20pin pin header
- 1x Dual plug USB3.0 cable
- 1x USB3.0 adapter
- 1x USB2.0 adapter
- 4x SMA protective cap
- Screws pack
- 30.0 x 52.0 mm
- USB 3.1 port (USB 2.0 compatible) for high-speed 5G communication
- Standard M.2 B KEY slot, compatible with RM502Q-AE series modules
- Onboard UART, PWR, and RST control pin with built-in voltage level translator
- Onboard USB-C connector for standalone power supply
- Onboard power supply on/off switch, reset button, and LED indicator
- Two SIM card slots, dual card single standby, switchable via AT command
- High-efficiency power supply circuit with up to 3A output current
- Compatible with 5G SUB-6 and 5G Standard 3GPP R15/R16
- Operating temperature: -30 °C to +75 °C
- Frequency bands: 5G NR NSA and SA, LTE-FDD, LTE-TDD, UMTS WCDMA
- GNSS support: GPS, GLONASS, BeiDou, Galileo
- Data rate: 5G SA Sub-6 downlink up to 4.2 Gbps, uplink up to 900 Mbps
- Multi-constellation high-precision GNSS
- Standard Raspberry Pi 40PIN GPIO header
- High-speed cooling fan for improved heat dissipation
