Waveshare PoE Mini-Computer (Type B) — Raspberry Pi CM4-Compatible (CM4 Not Included)

Description

Description

• Waveshare PoE Mini-Computer (Type B) Based on Raspberry Pi Compute Module 4 (not Included) (EU)
• Supports PoE Gigabit Ethernet for reliable connectivity
• Includes cooling fan for effective heat management
• Offers diverse peripheral connectors for various uses
• Features sturdy metal housing for enhanced durability
• Allows easy wall mounting with two-side holes

The Waveshare PoE Mini-Computer (Type B) Based on Raspberry Pi Compute Module 4 (not Included) (EU) is a sophisticated device designed to facilitate the creation of a compact computing system. It is engineered to accommodate the Raspberry Pi Compute Module 4, although the module itself is not included. The mini-computer is encased in a robust metal housing and features a cooling fan to enhance thermal management, ensuring optimal performance during operation.

This mini-computer is equipped with a variety of peripheral connectors, including CSI, DSI, HDMI, USB, Ethernet, PCIe, RS232, and RS485, providing extensive connectivity options for diverse applications. The precise cut-outs with clear labels ensure seamless alignment with each connector, enhancing usability and convenience. Additionally, the device supports wall mounting, with holes provided on two sides for easy installation.

The product is particularly suitable for applications such as binocular vision, PoE-powered Raspberry Pi projects, and other industrial uses, offering flexibility and adaptability in various contexts.

View moreWhat’s Included

• 1x Waveshare PoE Mini-Computer (Type B) Based on Raspberry Pi Compute Module 4 (not Included) (EU)
• 1x Compute Module 4 PoE Board (B)
• 1x Metal case (top and bottom)
• 1x Fan-4010-PWM-12V
• 1x Screwdriver
• 1x Screws pack

Links

Website

PoE Mini-Computer (Type B) Based on Raspberry Pi Compute Module 4 (NOT Included) (EU) – PoE Board Wiki

Specifications

• PoE Gigabit Ethernet
• 40-pin GPIO
• PCIe
• USB
• DSI
• HDMI
• CSI
• RTC
• Fan header
• Power input

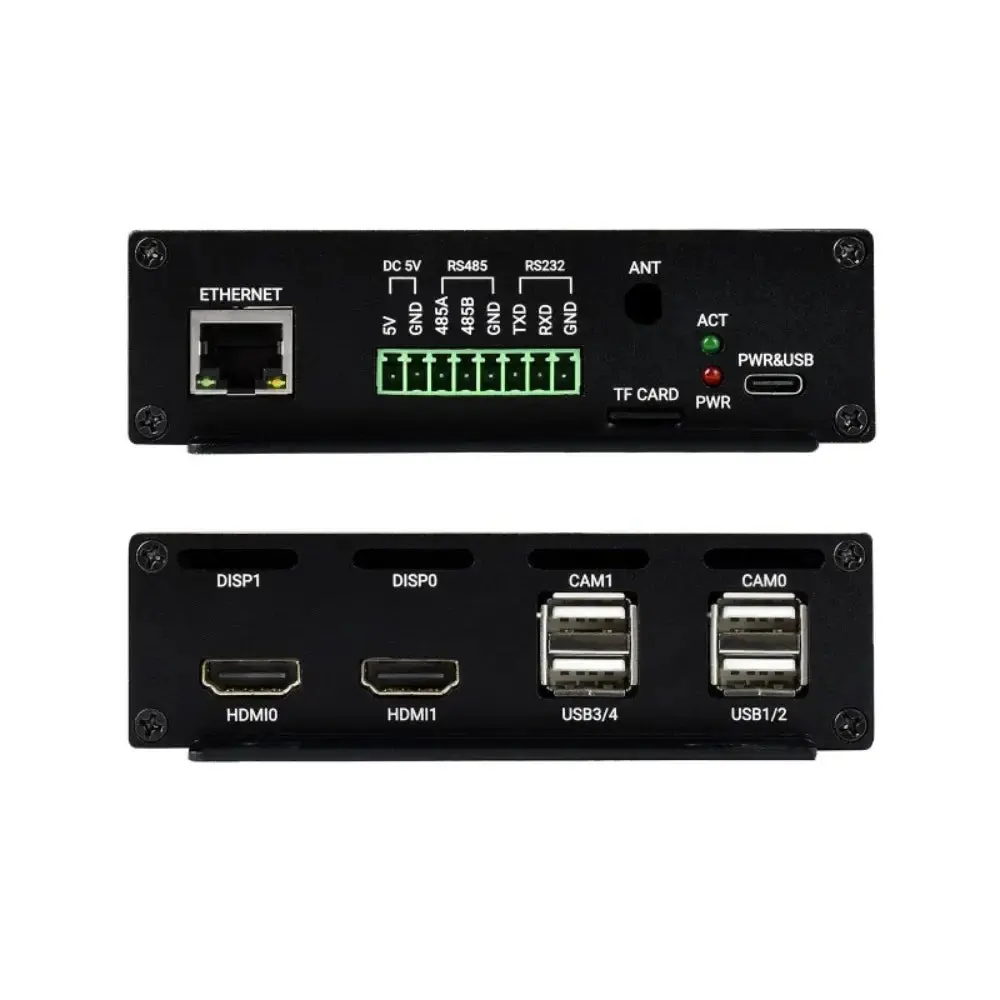

• Rich peripheral connectors including CSI, DSI, HDMI, USB, Ethernet, PCIe, RS232, RS485
• Precise cut-out with clear label
• Cooling fan included, combined with airflow vent for improved heat dissipation
• Wall mount support with holes on two sides
