Description
- Waveshare Mini Uninterruptible Power Supply Module, Supports Charging & Power Output at the Same Time, 5V 2.5A Output
- Supports simultaneous charge and power output
- Integrates seamlessly using I2C bus
- Ensures safety with multiple protection circuits
- Monitors battery metrics in real-time
- Switches to battery if external power fails

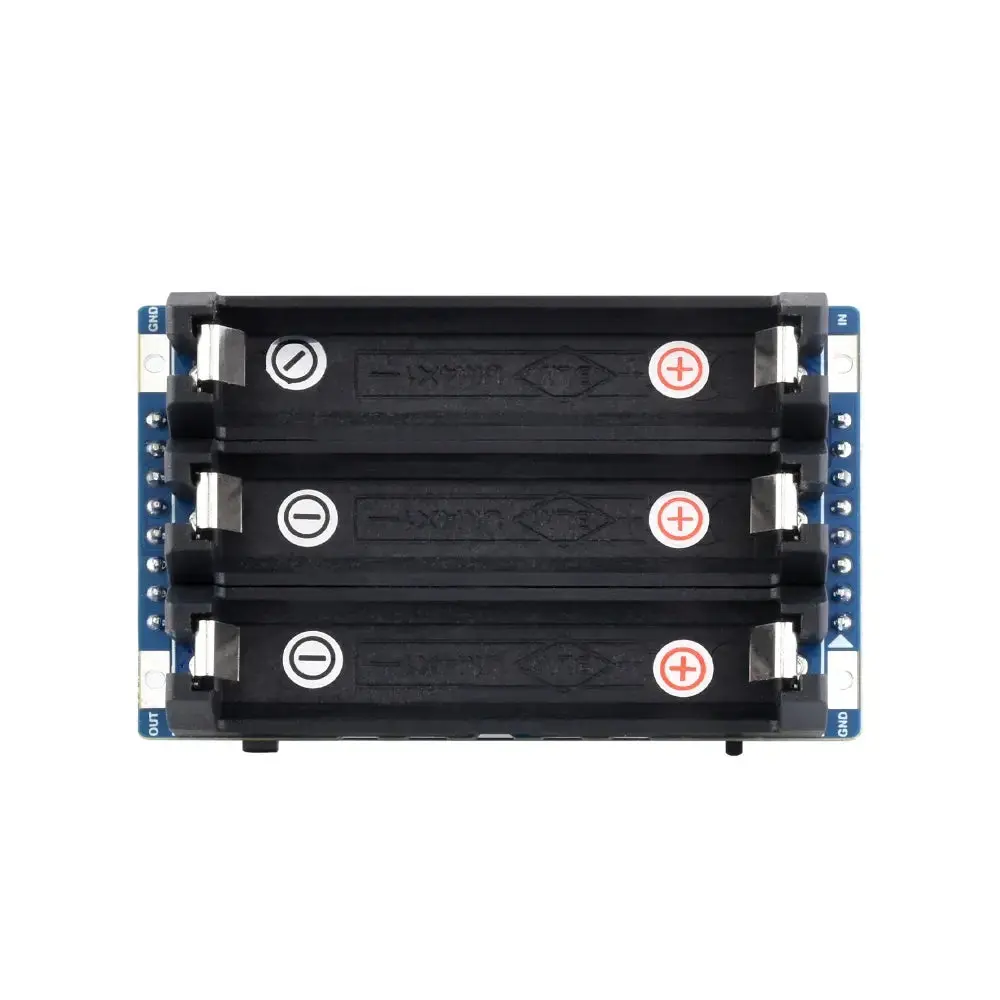

The Waveshare Mini Uninterruptible Power Supply Module, Supports Charging & Power Output at the Same Time, 5V 2.5A Output is a compact expansion board designed for seamless integration into mobile robots and industrial control systems. It features I2C bus communication for real-time monitoring of battery metrics such as voltage, current, power, and capacity. The module includes multiple battery protection circuits, ensuring safe and stable operation with overcharge, overcurrent, short circuit, and reverse protection.
This module can charge batteries while simultaneously providing power output, automatically switching to battery power if the external supply is interrupted. It is equipped with onboard indicators for easy monitoring of battery connection and charging status.
- 1x Waveshare Mini Uninterruptible Power Supply Module, Supports Charging & Power Output at the Same Time, 5V 2.5A Output
- 61 x 38 mm
Website
- Output voltage: 5V 2.5A
- Charger support: 5V 3A
- Control bus: I2C
- Supports 10440 lithium battery × 3 (in parallel, not included)
- Onboard 5V regulator with up to 2.5A continuous output current
- Onboard warning indicators for battery connection and charging status
- Onboard multiple function pins for charging and discharging via pads and pin headers
- Protection circuits for overcharge/discharge, overcurrent, short circuit, and reverse
- Real-time monitoring of battery voltage, current, power, and remaining capacity via I2C interface
- Automatically switches to battery output if external power is unavailable
