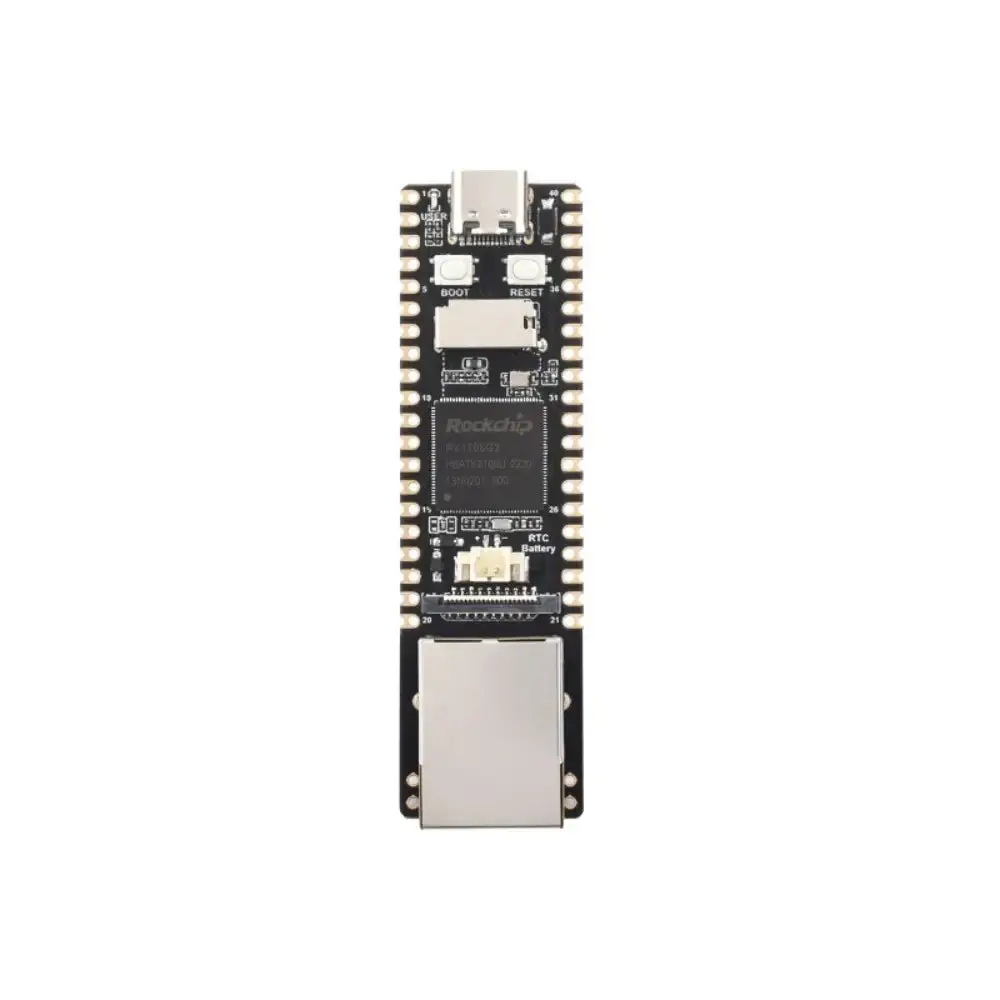

Waveshare Luckfox Pico Pro/Max — RV1106 Linux SBC with ARM Cortex-A7, RISC-V MCU, NPU, ISP, 128 MB RAM (No Headers)

Description

Description

• Waveshare Luckfox Pico Pro/Max RV1106 Linux Micro Dev Board, ARM Cortex-A7/RISC-V MCU/NPU/ISP (128MB, no Headers)
• Integrates ARM Cortex-A7 and Rockchip NPU
• Supports advanced image processing with HDR
• Optimizes storage with efficient encoding
• Offers versatile development options with TF and Ethernet
• Features powerful hybrid quantization in NPU

The Waveshare Luckfox Pico Pro/Max RV1106 Linux Micro Dev Board, ARM Cortex-A7/RISC-V MCU/NPU/ISP (128MB, no Headers) integrates advanced processing capabilities with an ARM Cortex-A7 core and a Rockchip-developed NPU, supporting hybrid quantization for enhanced computational precision. It features a third-generation ISP for superior image processing, including HDR and noise reduction, and offers efficient encoding performance that optimizes storage space. The board is equipped with DDR3L memory, a TF card slot, camera interface, and Ethernet port, facilitating ease of development for various applications.

View moreWhat’s Included

• 1x Waveshare Luckfox Pico Pro/Max RV1106 Linux Micro Dev Board, ARM Cortex-A7/RISC-V MCU/NPU/ISP (128MB, no Headers)

Links

Website

Luckfox Pico Pro/Max RV1106 Linux Micro Dev Board, ARM Cortex-A7/RISC-V MCU/NPU/ISP (128MB, No Headers) – Quick Start Guide

Specifications

• Processor: Cortex A7 at 1.2GHz
• NPU: 0.5TOPS, supports int4, int8, and int16
• ISP: Input 5M at 30fps (Max)
• Memory: 128MB DDR3L
• USB 2.0 Host/Device
• Camera: MIPI CSI 2-lane
• GPIO: 26 GPIO pins
• Ethernet port: 10/100M Ethernet controller and embedded PHY
• Default Storage: SPI NAND FLASH (256MB)
• Integrates CPU, NPU, ISP, and other processors
• Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
• Built-in Rockchip self-developed 4th generation NPU, supports int4, int8, and int16 hybrid quantization
• Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, and multi-level noise reduction
• Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving, saves more than 50% bit rate of the conventional CBR mode
• Built-in 16-bit DRAM DDR3L, capable of sustaining demanding memory bandwidths
• Integrated with built-in POR, audio codec, and MAC PHY
• Integrates TF Card Slot, Camera Interface, and Ethernet Port
