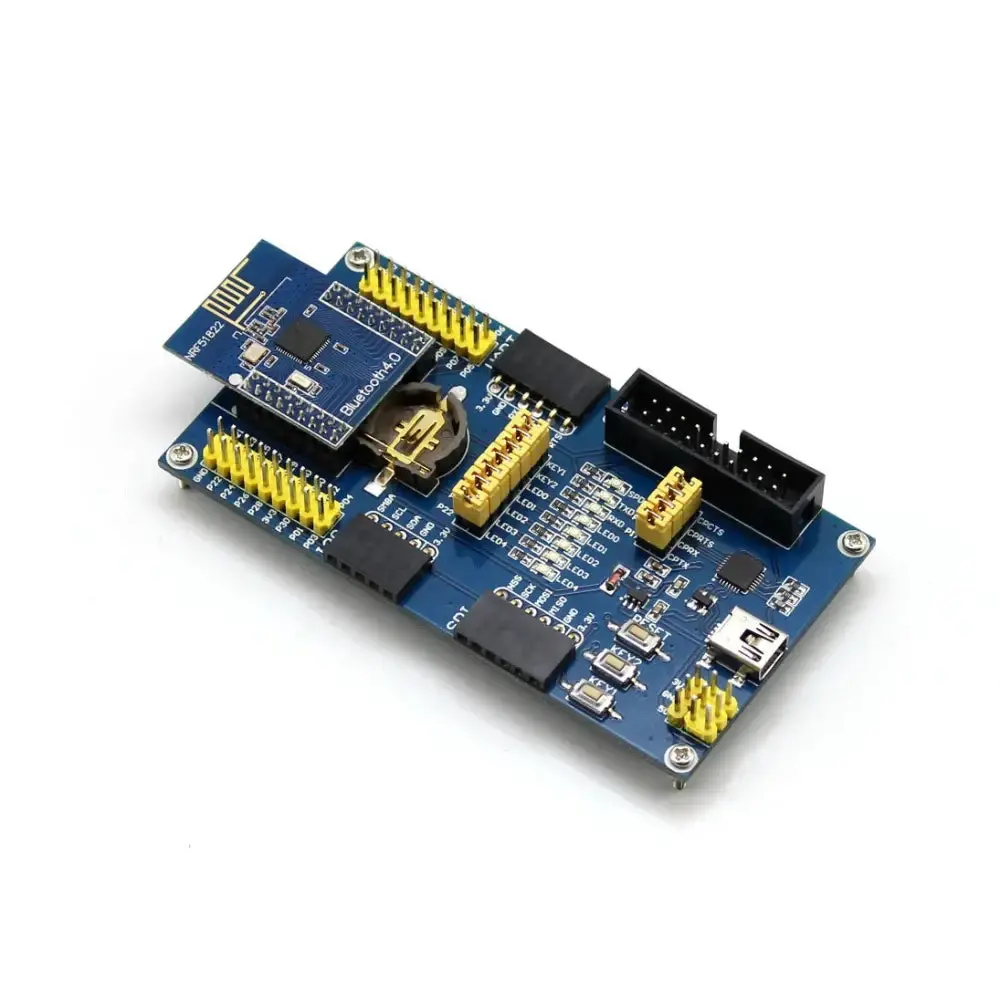

Waveshare BLE400 Bluetooth 4.0 Development Board – Integrated Motherboard

Description

Description

• Waveshare BLE400 Bluetooth 4.0 Motherboard
• Integrates CP2102 for easy debugging
• Supports I2C, SPI, and UART interfaces
• Includes onboard battery holder
• Ensures compatibility with official boards
• Facilitates USB to UART conversion

The Waveshare BLE400 Bluetooth 4.0 Motherboard is a versatile platform designed for BLE4.0 Bluetooth 2.4G wireless modules. It features an onboard battery holder and supports multiple power supplies, facilitating easy expansion through accessible I/O connectors. The motherboard integrates a CP2102 for debugging purposes and includes user-friendly LEDs and keys, ensuring compatibility with other official boards. It offers various interfaces such as I2C, SPI, and UART, along with a USB connector for USB to UART conversion. The design supports seamless connectivity with wireless modules and accessories.

View moreWhat’s Included

• 1x Waveshare BLE400 Bluetooth 4.0 Motherboard
• 1x USB Type A to Mini-B cable

Links

Website

Bluetooth 4.0 Motherboard – BLE400 Wiki

Specifications

• Onboard battery holder with multiple power supply options
• All IOs accessible for easy expansion
• Integrates CP2102 for debugging
• Includes LEDs and user keys, compatible with other official boards
• Wireless module connector for connecting modules like Core51822
• MCU pins expansion connector
• I2C interface
• SPI interface
• 5V/3.3V power input/output, commonly used as power output and common-grounding with other user boards
• USB connector: USB to UART via onboard converter CP2102
• Debugging interface
• UART interface
• Battery holder
• User LEDs
• User keys
• Reset button
• CP2102
• USB to UART jumper
• LEDs and keys jumper
