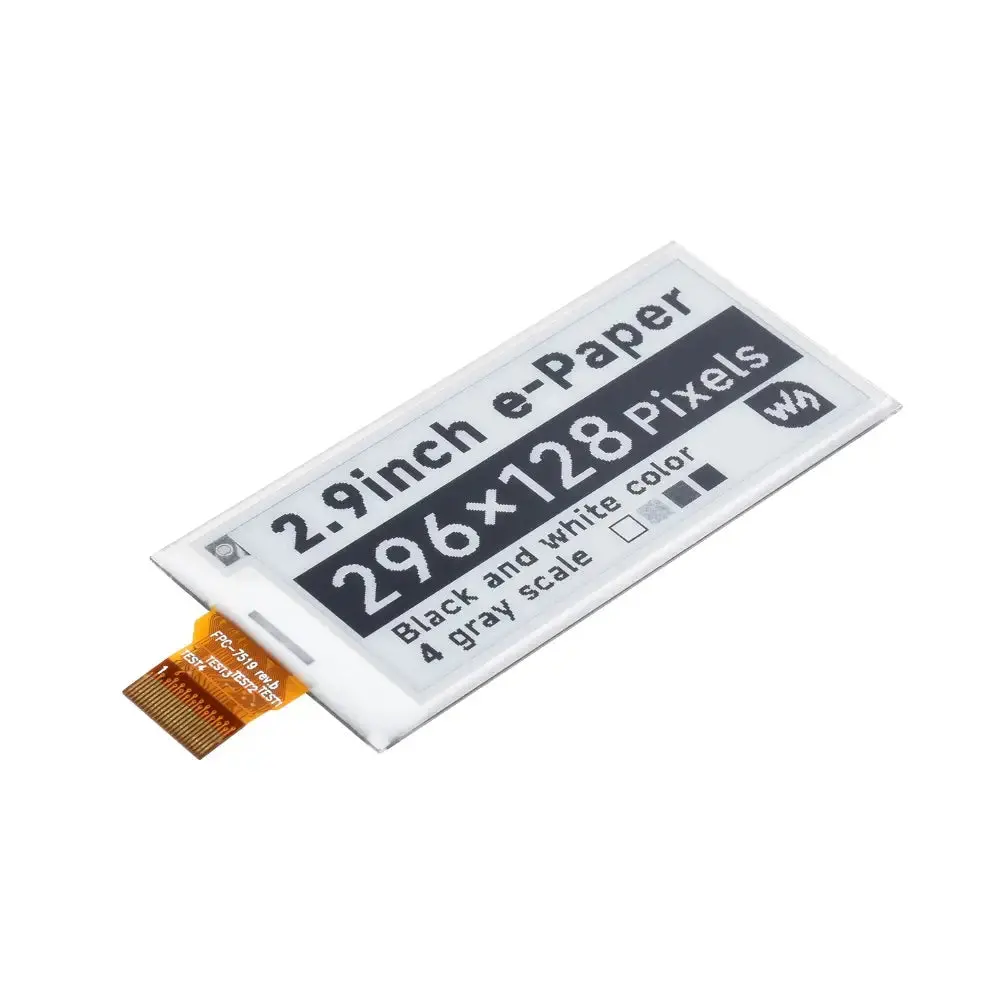

- Waveshare 296×128, 2.9″ E-Ink Raw Display Panel
- Offers paper-like viewing experience
- Features ultra-low power consumption
- Supports partial refresh, keeps last content
- Utilizes e-paper display with 170° viewing angle
- Ideal for price tags and shelf labels
The Waveshare 296×128, 2.9″ E-Ink Raw Display Panel offers a paper-like viewing experience with its black and white e-paper display. It features a resolution of 296×128 pixels and a wide viewing angle of over 170 degrees, making it ideal for applications such as price tags, shelf labels, and industrial instruments. This display operates with ultra-low power consumption, requiring energy primarily for refreshing the content. It supports partial refresh and maintains the last displayed content even when powered down, thanks to its passively reflective nature.
- 1x Waveshare 296×128, 2.9″ E-Ink Raw Display Panel
- Outline Dimensions: 79.00 x 36.70 x 1.05 mm
- Display Size: 66.89 x 29.05 mm
Website
- Resolution: 296×128 pixels
- Viewing Angle: >170°
- Display Color: Black/White
- Grey Scale: 4
- Communication: SPI
- Display Panel: E-paper
- Experience: Paper-like
- Environment: Ambient Light Required
- Display Type: Passively Reflective
- Refreshing: Partial Refresh Support
- No backlight, retains last content for a long time even when powered down
- Ultra-low power consumption, power required only for refreshing
- Operating Voltage: 3.3V
- Interface: 3-wire SPI, 4-wire SPI
- Full Refresh Time: 3 seconds
- Partial Refresh Time: 0.6 seconds
- Refresh Power: 26.4mW (typical)
- Standby Current: <0.01µA (almost none)
- Dot Pitch: 0.226 × 0.227mm
- E-paper display uses microcapsule electrophoretic technology
- Charged particles in clear fluid move to sides of microcapsule when electric field is applied
- Microcapsule becomes visible by reflecting ambient light, similar to printed paper
- E-paper display shows images/texts clearly under lamplight or natural light
- Requires no backlight
- Features nearly 180° viewing angle
- Commonly used as an e-reader due to its paper-like effect
