Description
- Waveshare 2.13″ E-Paper HAT+ for Raspberry Pi, E-Ink Display, 250×122, SPI Interface, HAT+ Standard
- Offers paper-like viewing experience
- Supports partial refresh and no backlight
- Ensures seamless Raspberry Pi compatibility
- Includes durable immersion gold process
- Features high-precision RTC chip

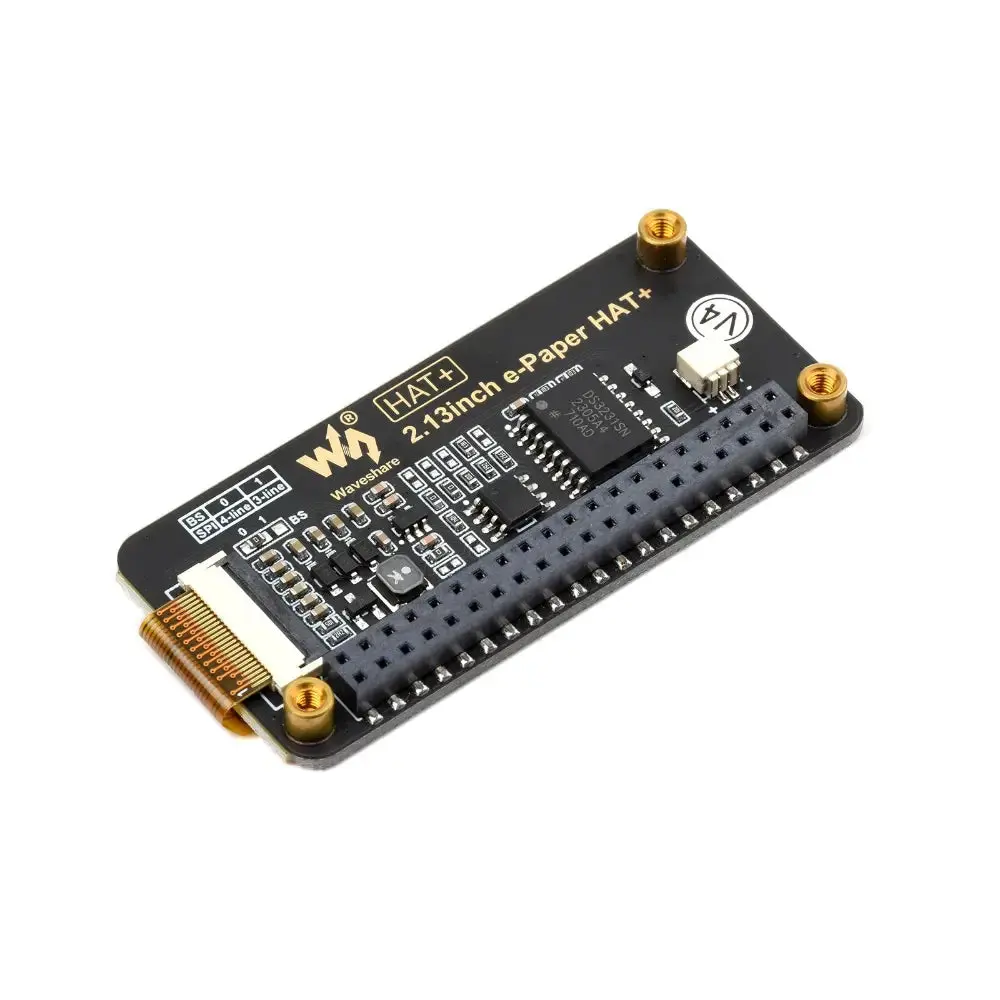

The Waveshare 2.13″ E-Paper HAT+ for Raspberry Pi, E-Ink Display, 250×122, SPI Interface, HAT+ Standard is an advanced display module designed for Raspberry Pi. It features a 2.13-inch e-paper display with a resolution of 250×122, offering a paper-like viewing experience with a wide angle of over 170 degrees. The display supports partial refresh and operates without a backlight, maintaining the last image even when powered down.
This module incorporates an immersion gold process for enhanced durability and reliability, and includes a high-precision RTC chip for accurate timekeeping. It adheres to the HAT+ standard, ensuring seamless interoperability with Raspberry Pi and other compatible boards.
- 1x Waveshare 2.13″ E-Paper HAT+ for Raspberry Pi, E-Ink Display, 250×122, SPI Interface, HAT+ Standard
- 1x Screws Pack
- Outline Dimensions: 65 x 30.5 mm
- Display Size: 48.55 x 23.70 mm
Website
- Resolution: 250×122
- Viewing Angle: Greater than 170°
- Display Color: Black and White
- Grey Scale: 2
- Communication: SPI
- Display Panel: E-paper
- Experience: Paper-like
- Environment: Ambient Light Required
- Display Type: Passively Reflective
- Refreshing: Partial Refresh Support
- Immersion Gold: Durable and Reliable
- HAT+ Standard: Improves interoperability
- Onboard high-precision RTC chip for accurate time control
- Optimized PCB layout with additional mounting holes for fixing screws
- Adopts Immersion Gold process, anti-oxidation and anti-corrosion, enhances soldering performance and improves electrical properties
- No backlight, retains last content for a long time even when powered down
- Operating Voltage: 3.3V
- Interface: 3-wire SPI, 4-wire SPI
- Full Refresh Time: 2 seconds
- Partial Refresh Time: 0.3 seconds
- Fast Refresh Time: 1.8 seconds
- Dot Pitch: 0.194 × 0.194 mm
- Refresh Power: 10.5 mW (typical)
- Standby Power: Less than 0.01 mW (typical)
- Standard Raspberry Pi 40-pin GPIO Header
- Compatible with Raspberry Pi Series Boards, Jetson Nano, RDK X3
- Thin and Light Design
- High-Precision RTC Chip, adopts Immersion Gold anti-oxidation process
