Description

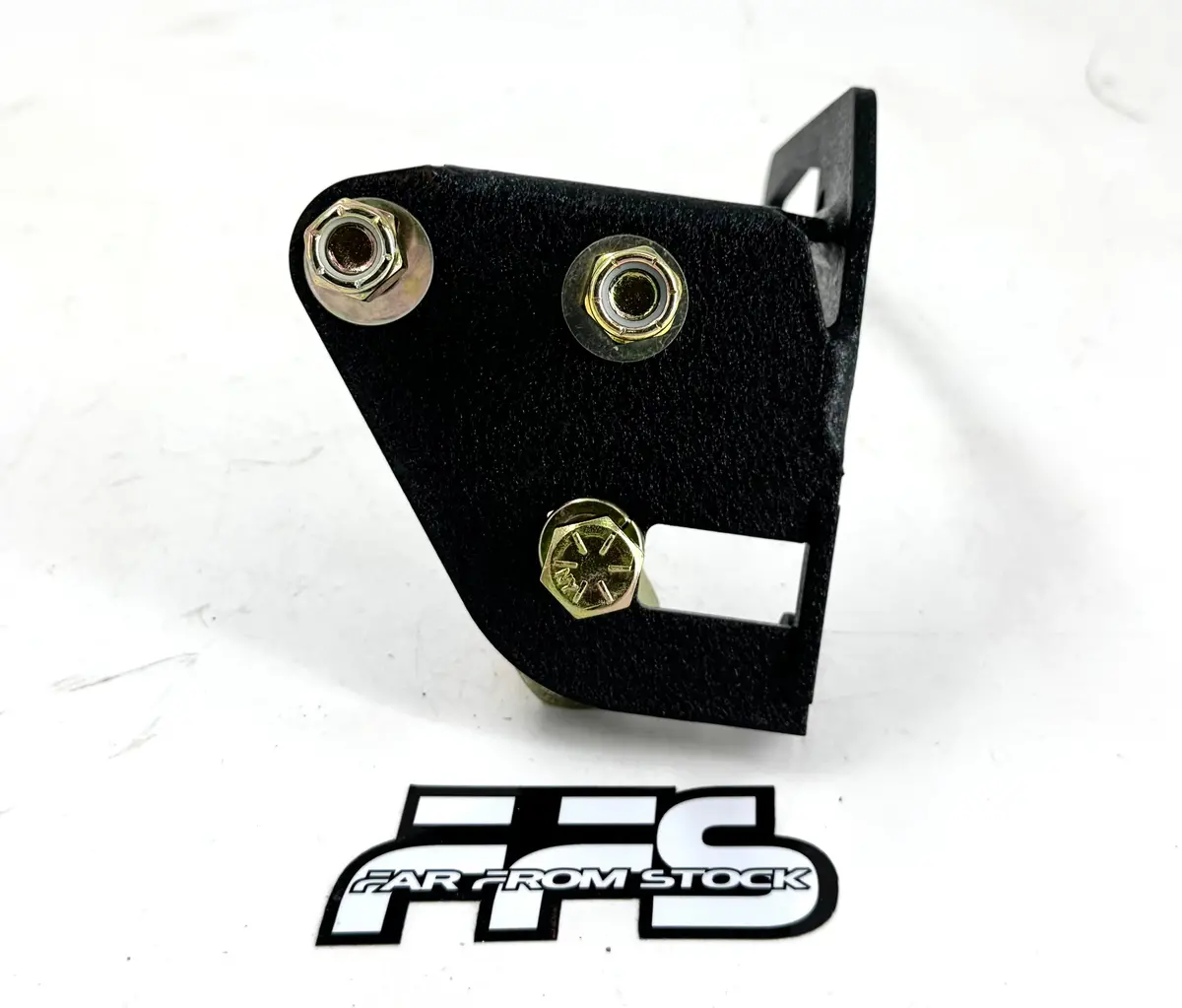

Transfer Case Shifter Mount for 47RE / 48RE Swaps

Transfer Case Shifter Mount for 47RE / 48RE swaps to retain the mount for a right-hand shifter that originally came in 1993 and prior trucks.

We use this with a few listed mods to retain a 205 transfer case and linkage. Requires some mods but easy. Also could easily start a cable shifter arrangement for a left side drop transfer case.

Bolts on the same bolts that retain the overdrive housing. Mostly a bolt-on, may require a small amount of trimming of excess case material.

Does not solve any issues with linkage length or type.

Key Specs

• Application: 47RE / 48RE transmission swaps.
• Purpose: Retains the RH shifter found in 1993 and earlier trucks.
• Transfer Case: Designed for NP205 with factory linkage; adaptable to cable shifter setups.
• Mounting: Uses overdrive housing bolts for attachment.
• Modification: Mostly bolt-on; may require minor trimming of excess case material.
• Limitations: Does not address linkage length or style.

Installation

1. Remove access to the overdrive housing bolts.
2. Position the bracket on the overdrive housing and test fit.
3. Trim excess case material if necessary for clearance.
4. Secure the bracket with the housing bolts.
5. Reinstall or fabricate shifter linkage or cable setup as needed.

Basic hand tools required. May require trimming of case material.

Shop Notes

• This bracket allows you to keep the right-hand shifter in 47RE/48RE swaps.
• Does not solve linkage length or type issues.
• Ask us about FFS in-house install.
