Description

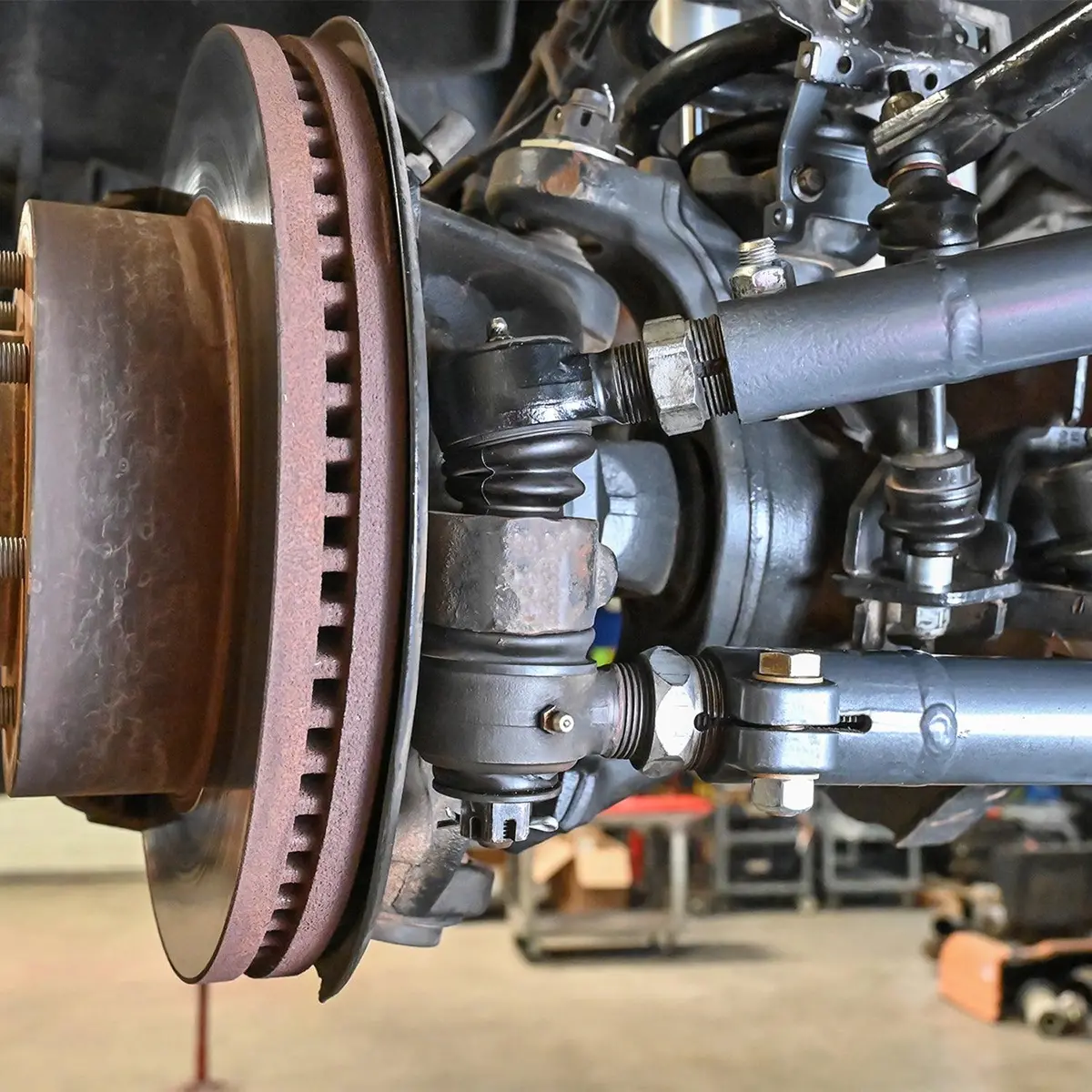

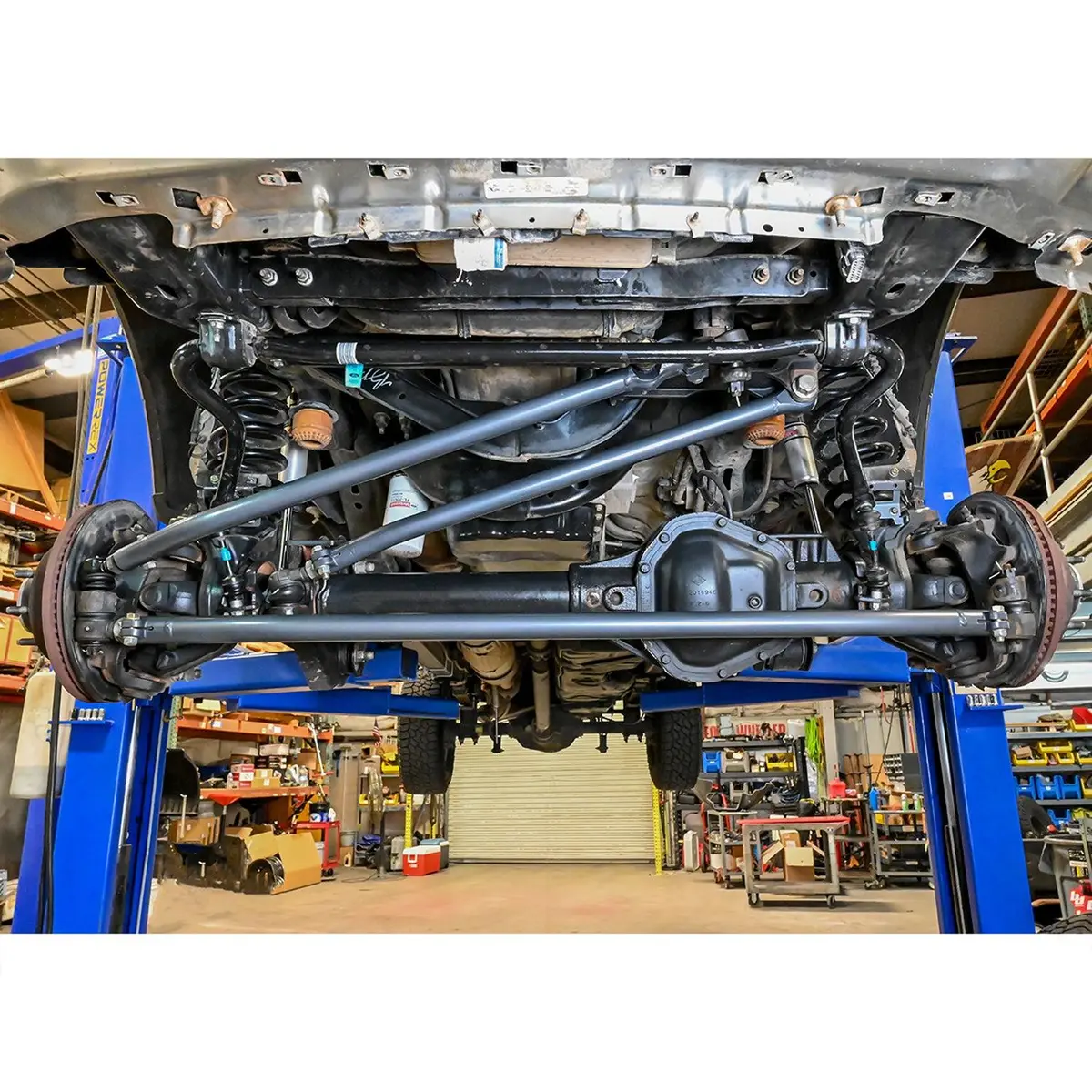

Synergy HD Ford steering is a bolt in upgrade for any 2005+ Ford F-250 and F-350 truck. Unlike the factory linkage that’s quick to wear, Synergy’s linkage was designed to withstand larger tires and off road usage. Unlike the stock linkage, Synergy also built their steering with easy servicing in mind, so you can replace joints individually should anything go wrong. The tie rod is made from heat treated 1.75″ 4130 chromoly for maximum strength. The drag link is made from 1.5″ 1026 DOM USA made steel tubing and is machined to retain the stock steering stabilizer.
Please note this steering will not fit F-450/F-550 trucks, and will not function with Carli low mount or dual opposing stabilizers.
Fitment:
- 2005+ Ford Super Duty F-250 / F-350
Benefits:
- Heavy Duty Drag Link is precision bent to clear factory axle brackets and is compatible from stock to 4″ lifted vehicles; Vehicles over 4″ of lift will require a drop pitman arm for compatibility
- Heat treated tie rod is over 40% stronger than OEM and formed post heat treating for superior strength

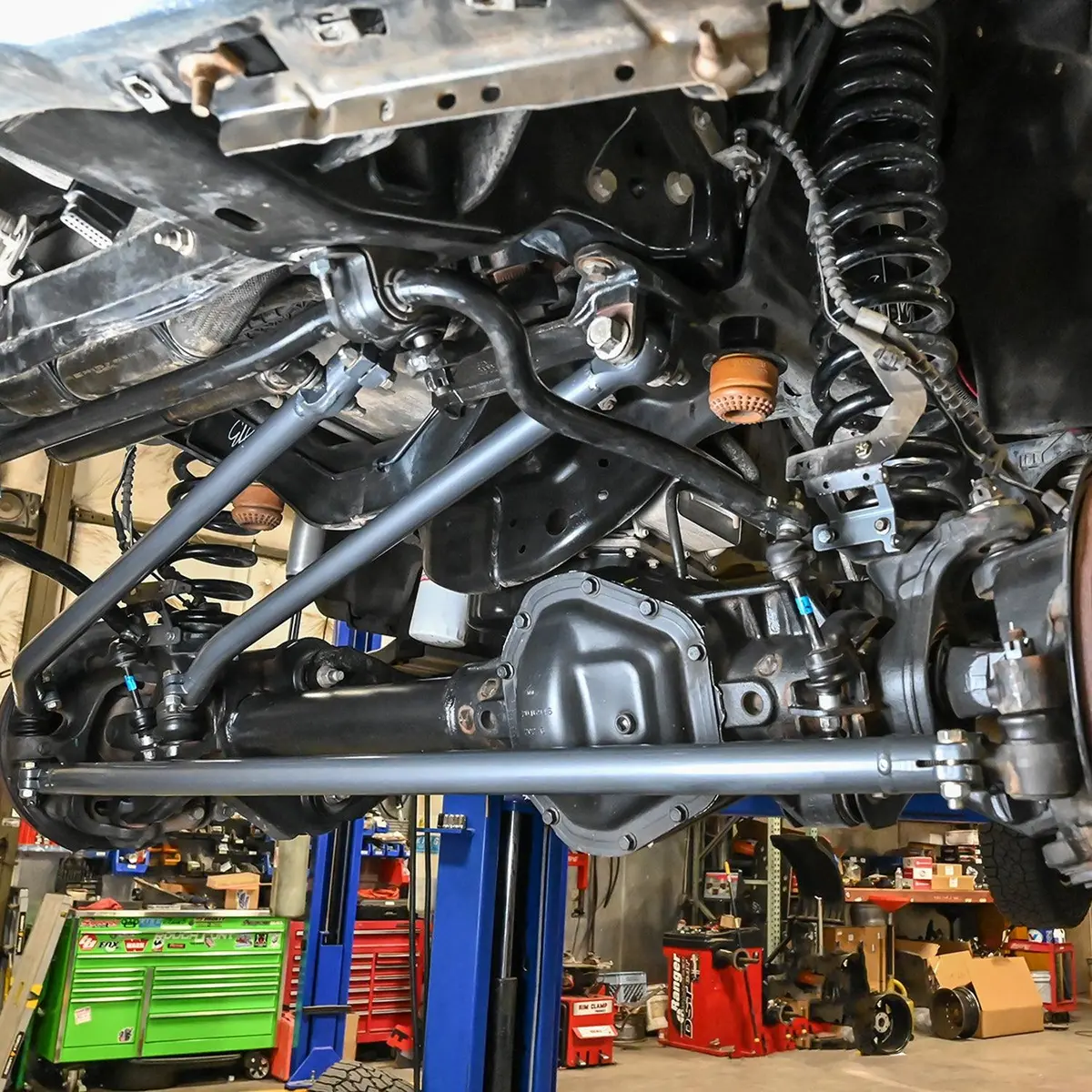

- Engineered for maximum articulation, the heavy duty tie rod is bent to clear sway bar mounts, differential cover, and steering pitman arm

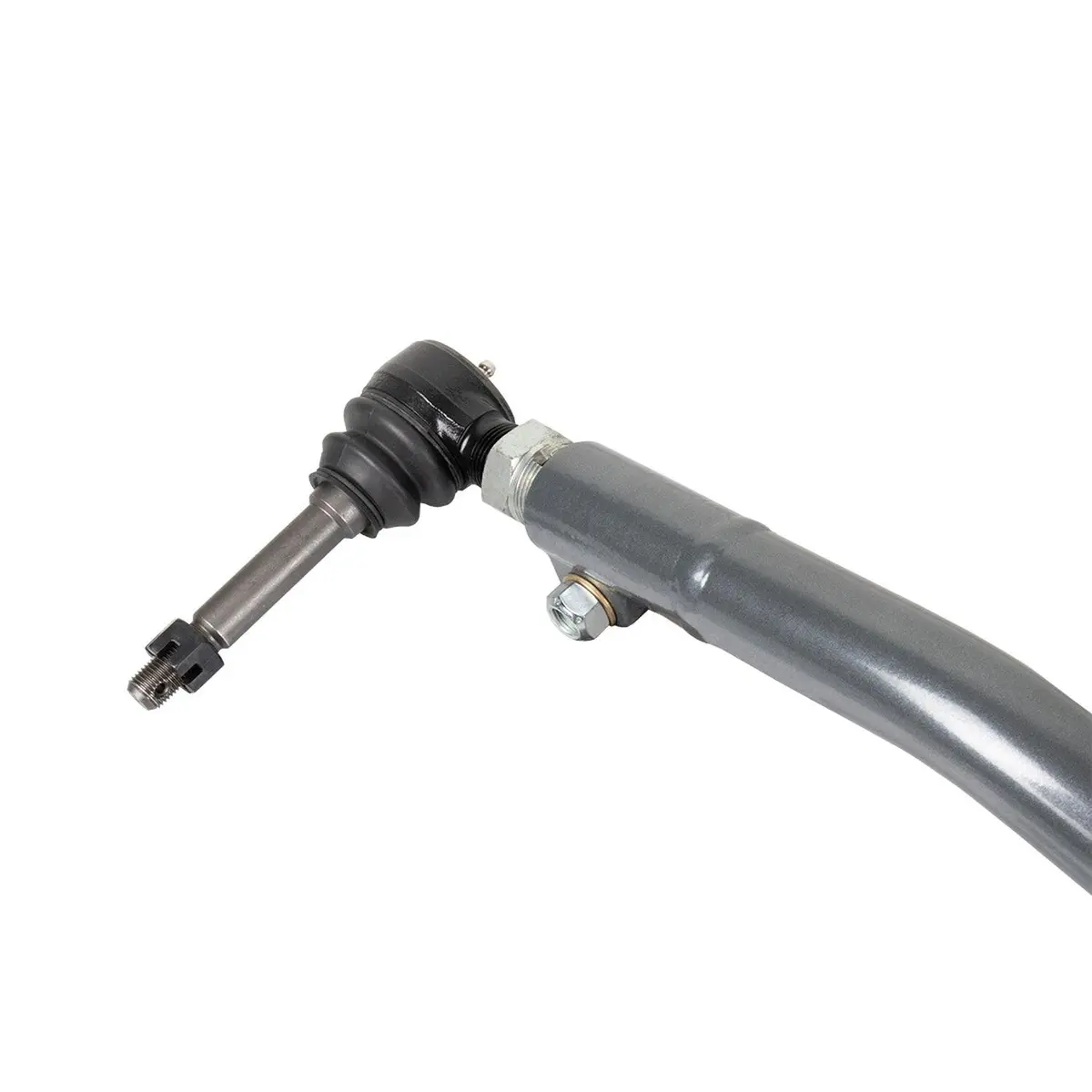

- Synergy Heavy Duty Tie Rod Ends are larger, stronger, and more durable than stock and include grease fittings and dust boots with retaining rings for easy maintenance
- Single plane tie rod ends eliminate unwanted drag link or tie rod movement and prevent the dead spot when changing direction

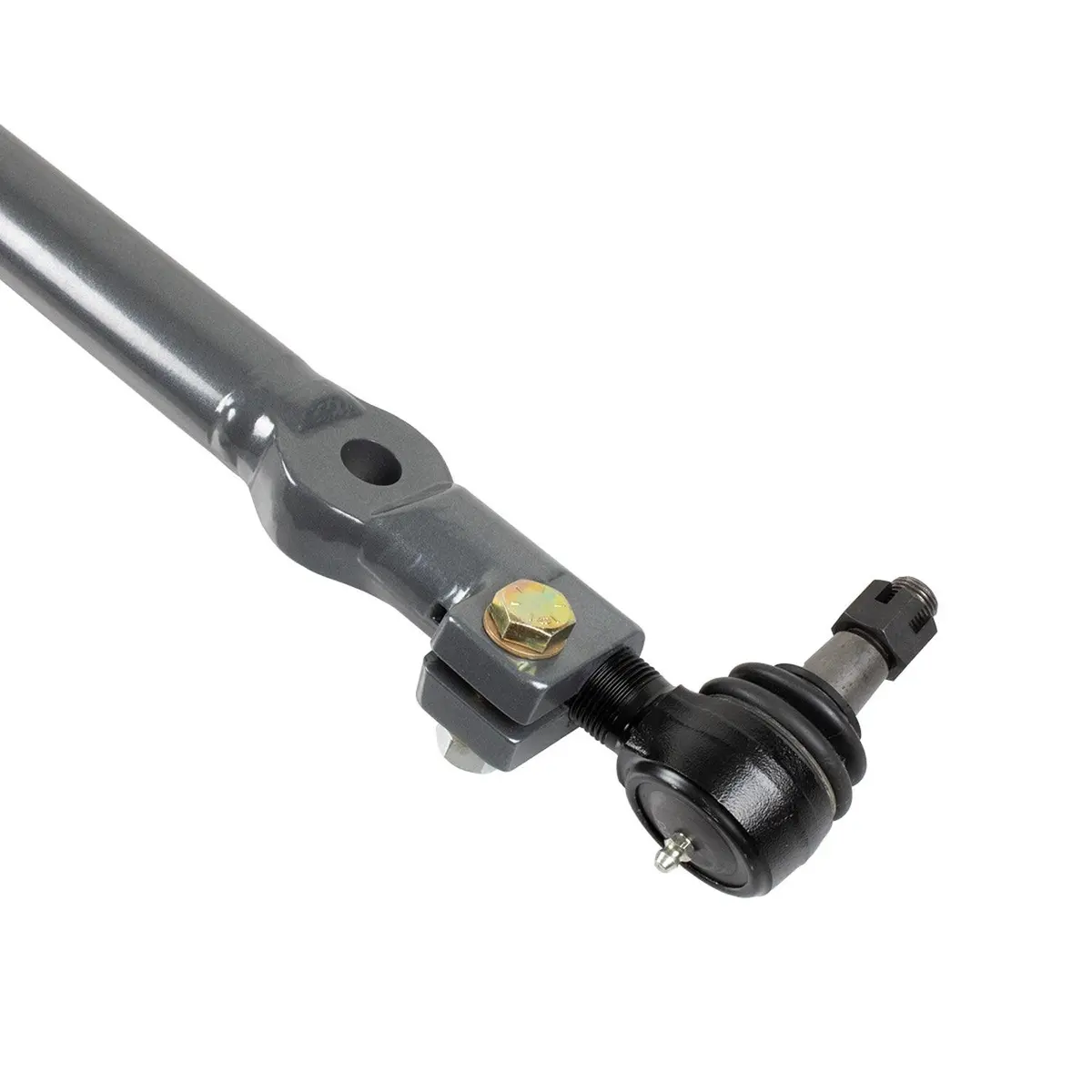

- Kit is fully adjustable while installed in the vehicle, thanks to our Double Adjuster Sleeve and Pinch Bolt Assembly
- Both the tie rod and drag link are fully sealed from the elements thanks to our Forged Pinch Bolt housings and complete welded assembly
- Fabricated clamp designed to retain the factory stabilizer, one of our recommended FOX or KING Stabilizers, or other aftermarket stabilizers with 1/2″ mounting bolts
- Synergy single and dual stabilizer brackets can be ran while retaining a stabilizer in the factory position on the drag link
- Pinch bolt design eliminates jam nuts, preventing loosening and alignment creep
- Compatible with stock wheels and tires and stock steering stabilizer
Features:
- Drag link is precision bent from 1.5″ x .250 wall 1026 USA made DOM
- Tie rod is engineered and bent from 1.75″ x .188 wall heat treated 4130 chromoly
- Two stage abrasion resistant powder coat finish for maximum durability and corrosion resistance
- Synergy metal on metal, fully greaseable tie rod ends include a 4140 steel shank, a 1018 steel bearing housing, and capped with a heavy duty nitrile-butadiene rubber boot and retaining spring
- Synergy Double Adjuster Sleeve and Pinch Bolt Assembly for easy alignment
- 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
Min/Max Length:
Measured in a straight line from center of tie rod end to center of tie rod end
- Drag Link:
- Min collapsed length: 42.625″
- Max extended length: 45″
- Tie Rod:
- Min collapsed length: 59.75″
- Max extended length: 62.5″
Includes:
STOCK STEERING STABILIZER MOUNTING LOCATION
| 2005+ FSD Steering Kit Only 8625-00 |

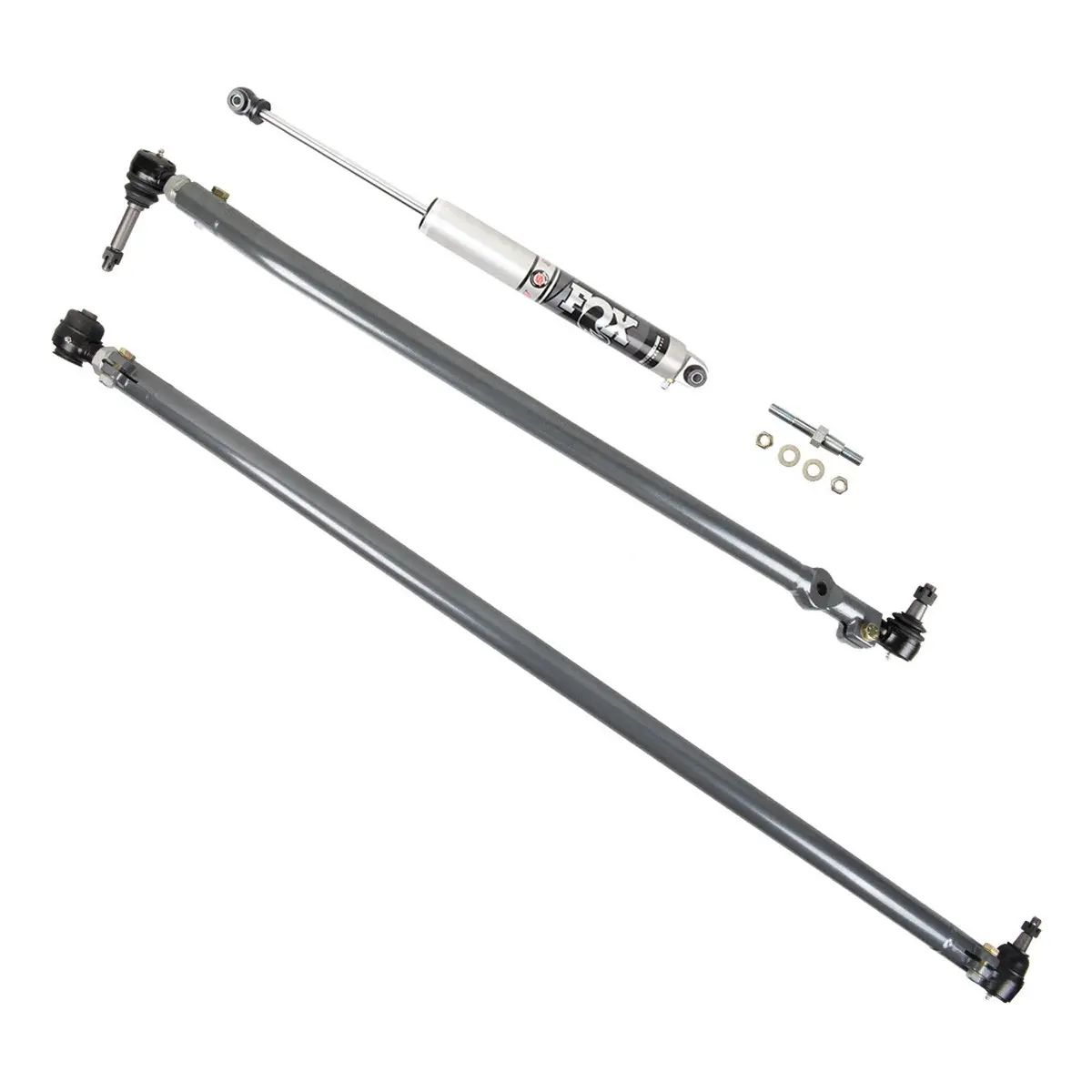

2008+ FSD Steering Kit with Single Fox Stabilizer 8625-01 |
2005 – 2007 FSD Steering Kit with Single Fox Stabilizer 8625-02 |

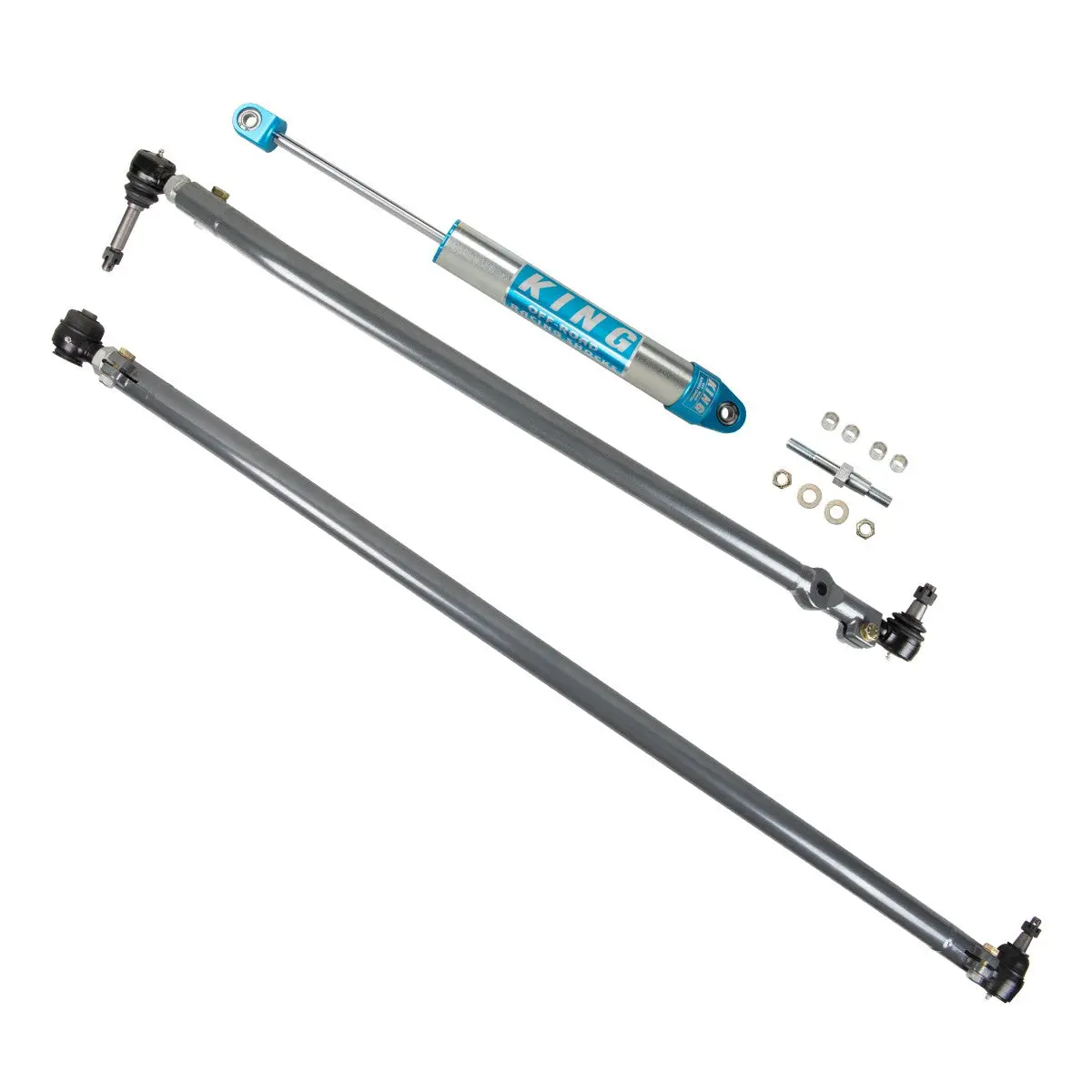

2008+ FSD Steering Kit with Single King Stabilizer 8625-03 |
| (1) 8600-01 – Heavy Duty Drag Link (1) 8602-11 – Heat Treated Heavy Duty Tie Rod |
(1) 8600-01 – Heavy Duty Drag Link (1) 8602-11 – Heat Treated Heavy Duty Tie Rod (1) 6401-02 – FOX Stabilizer |
(1) 8600-01 – Synergy Heavy Duty Drag Link (1) 8602-11 – Heat Treated Heavy Duty Tie Rod (1) 6401-03 – FOX Stabilizer |
(1) 8600-01 – Heavy Duty Drag Link (1) 8602-11 – Heat Treated Heavy Duty Tie Rod (1) 6410-02 – KING Stabilizer |
TIE ROD STEERING STABILIZER MOUNTING LOCATION

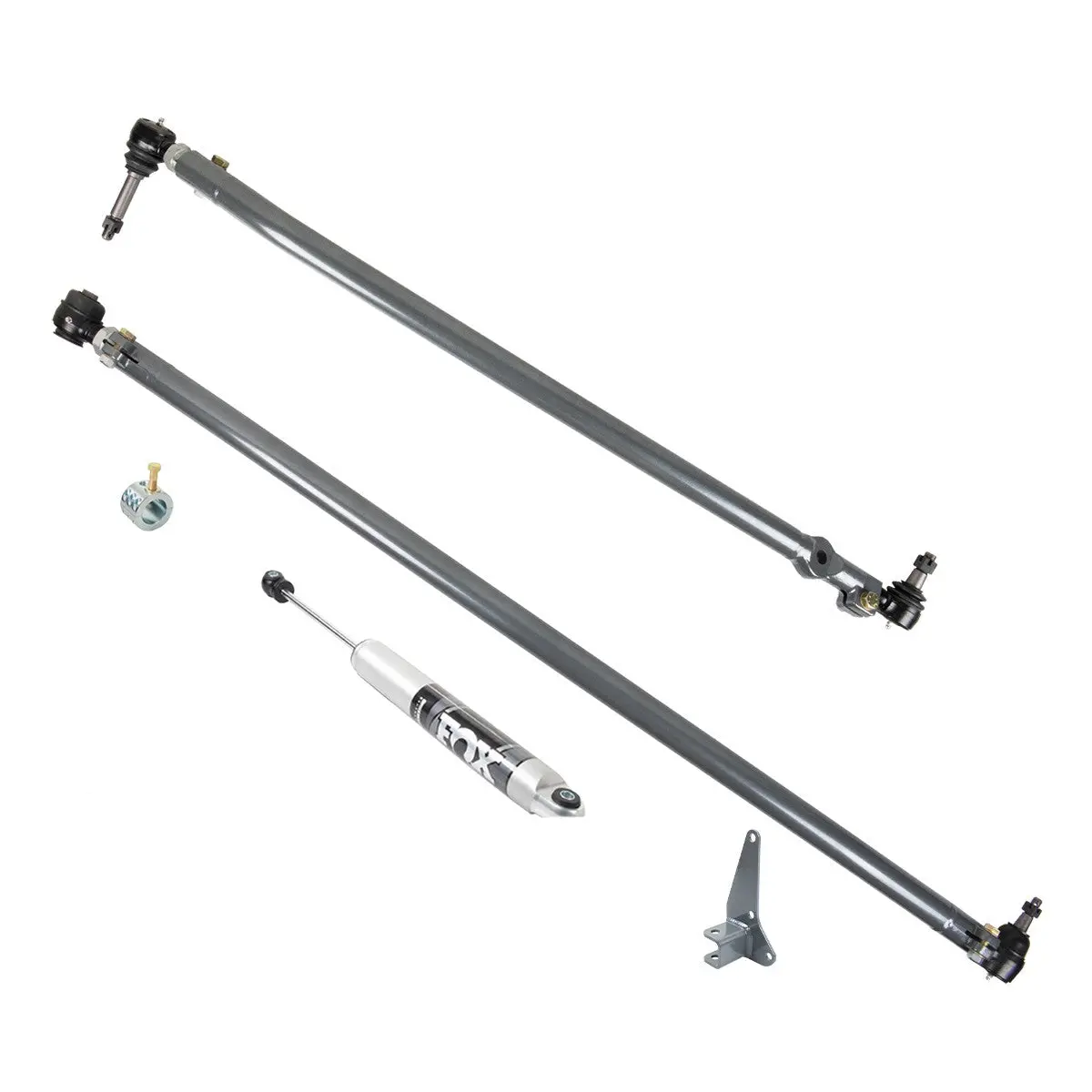

| 2005 – 2022 FSD Steering Kit with Single Fox Stabilizer Tie Rod Mount 8625-05 |

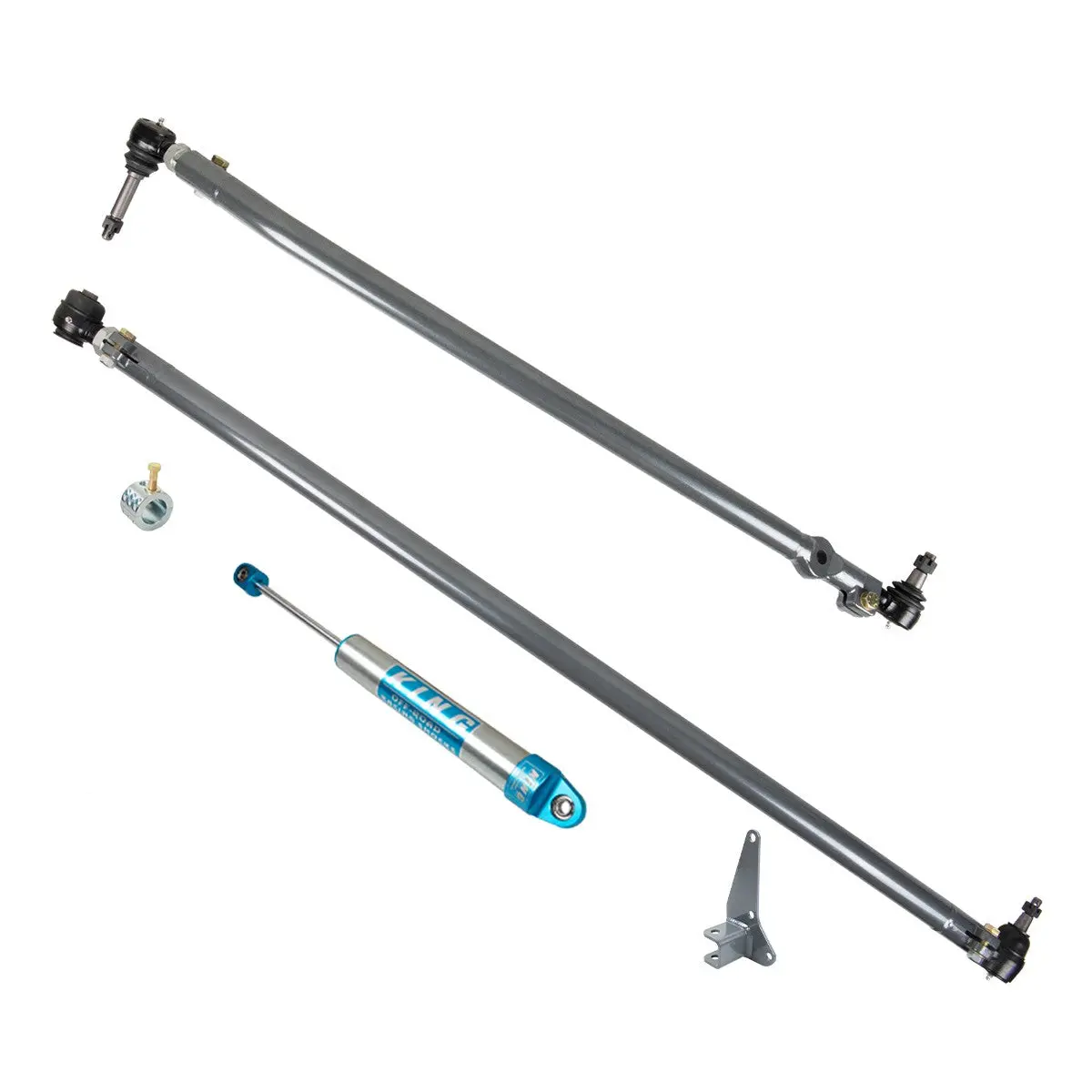

2005 – 2022 FSD Steering Kit with Single King Stabilizer Tie Rod Mount 8625-06 |

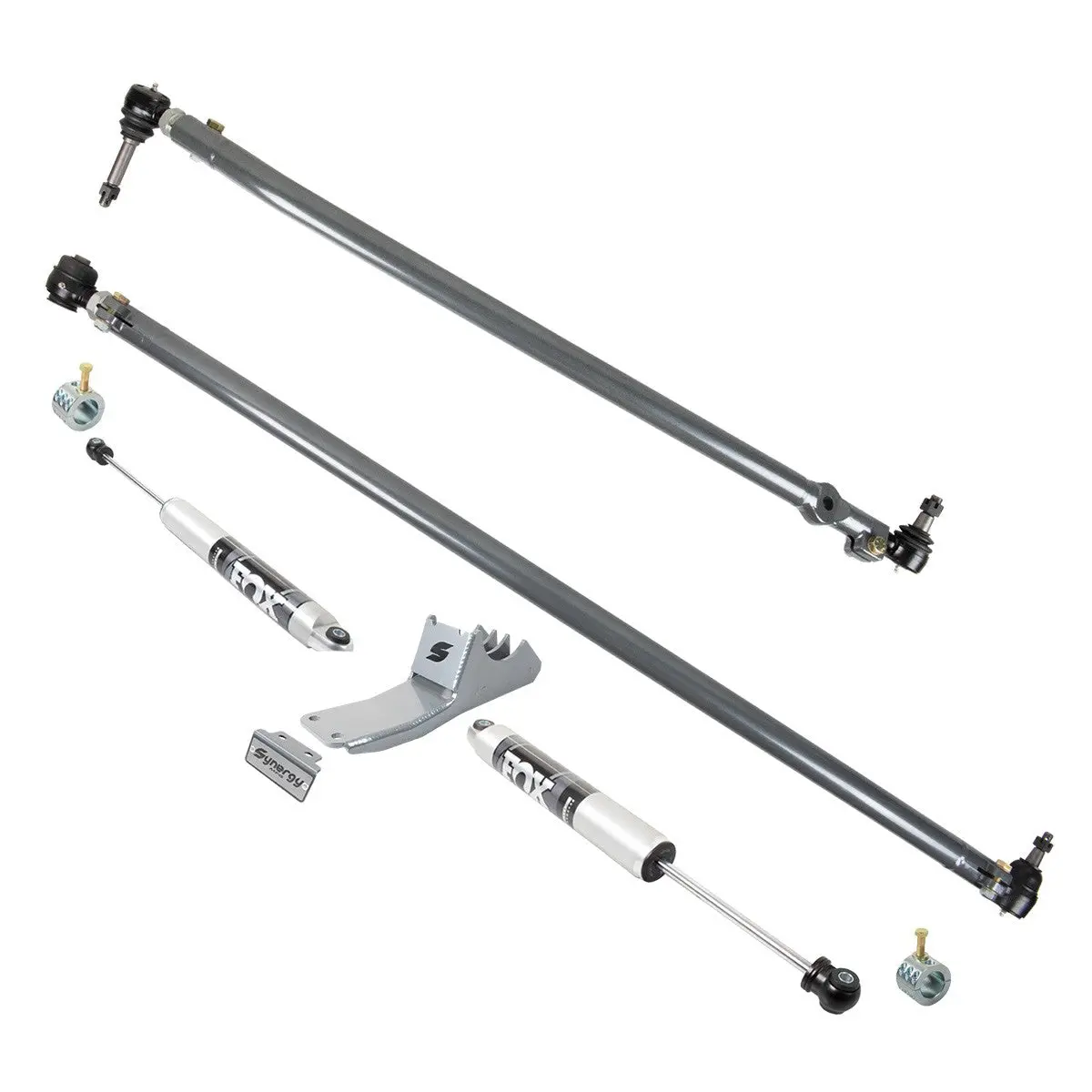

2005+ FSD Steering Kit with Dual Fox Stabilizers 8625-07 |

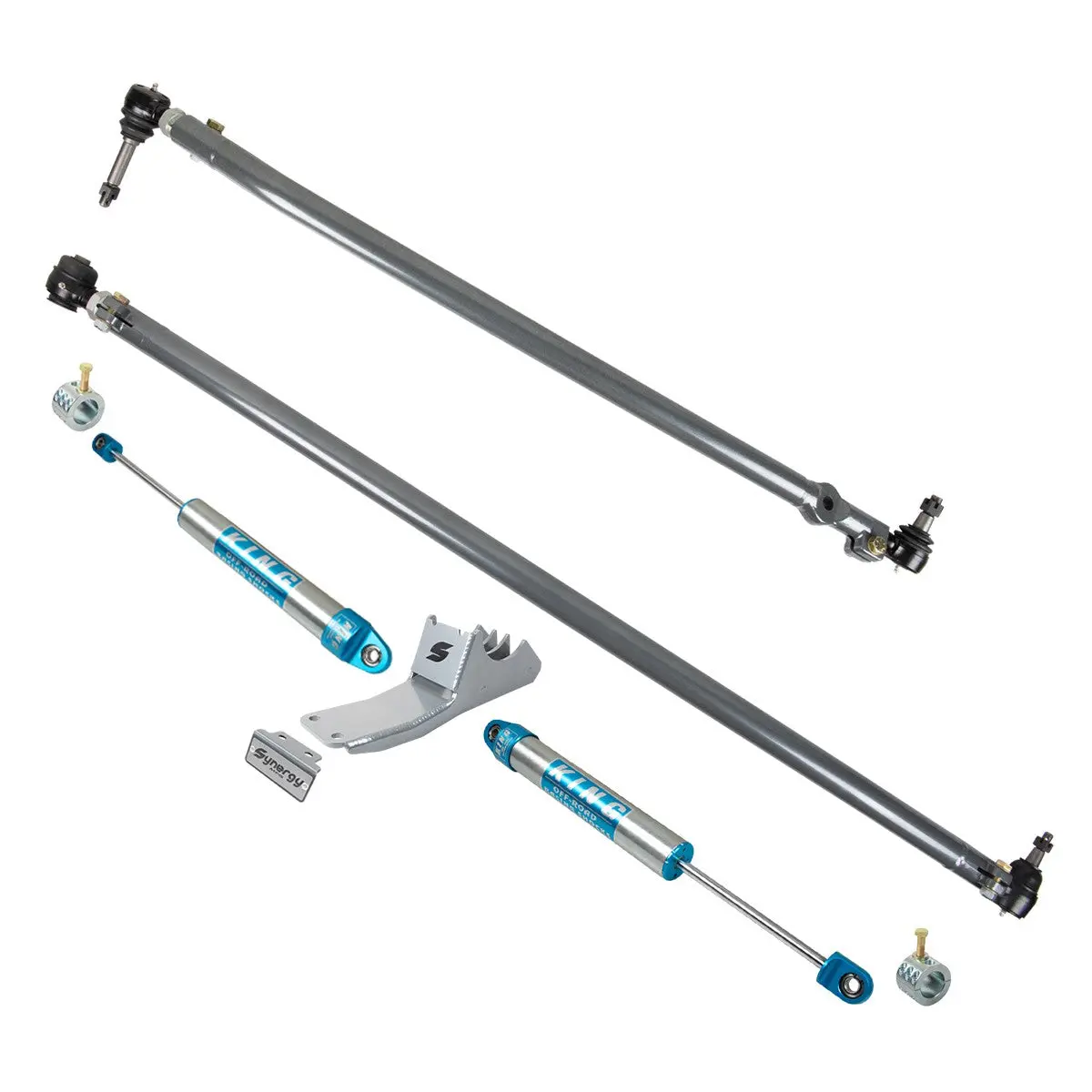

2005+ FSD Steering Kit Dual King Stabilizer 8625-08 |
| (1) 8600-01 – Synergy Heavy Duty Drag Link (1) 8602-11 – Heat Treated Heavy Duty Tie Rod (1) 8603-01 – Low Mount Bracket (1) 4050-75 – Steering Stabilizer Clamp (1) 6401-01 – Synergy Tuned Fox Stabilizer |
(1) 8600-01 – Heavy Duty Drag Link (1) 8602-11 – Heat Treated Heavy Duty Tie Rod (1) 8603-01 – Low Mount Bracket (1) 4050-75 – Steering Stabilizer Clamp (1) 6410-01 – KING Stabilizer |
(1) 8600-01 – Heavy Duty Drag Link (1) 8602-11 – Heat Treated Heavy Duty Tie Rod (1) 8610-01 – Dual Steering Stabilizer Bracket (2) 4050-75 – Steering Stabilizer Clamps (2) 6401-01 – FOX Stabilizers |
(1) 8600-01 – Synergy Heavy Duty Drag Link (1) 8602-11 – Heat Treated Heavy Duty Tie Rod (1) 8610-01 – Dual Steering Stabilizer Bracket (2) 4050-75 – Steering Stabilizer Clamps (2) 6410-01 – KING Stabilizers |
Notes:
- We recommend tie rod mounted stabilizers for best fitment of larger aftermarket components and highest stabilizer efficiency
- Drag Link Replacement Tie Rod Ends:
- Driver Side – 4152-L
- Passenger Side – 4153-L
- Tie Rod Replacement Tie Rod Ends:
- Driver Side – 4151-L
- Passenger Side – 4150-L
- Additional recommended Steering Stabilizers:
- TS – Through Shaft 6402-XX
- ATS – Adjustable Through Shaft 6403-XX
- Additional steering stabilizer options: KING 2.0 Performance Stabilizers
- Select your steering stabilizer based on the intended stabilizer configuration
- Recommended to be used with Synergy Steering Stabilizer Clamps 4050-50 (drag link) or 4050-75 (tie rod)
- Fox TS or ATS Stabilizers require the use of (2) Synergy TS / ATS Clamp Adapters 4051-01
- 4.75″ backspacing wheels or less required for use with TS and ATS stabilizers
- Compatible on vehicles with up to 4″ of ride height with stock pitman arm & track bar bracket. Compatible on vehicles with 4″+ lift with drop pitman arm and track bar drop bracket.
- Synergy High Performance Grease part number 4119 to be used with all Tie Rod Ends
- Synergy Premium Copper Infused Anti-Seize 4118 to be used with all threaded components
Optional Stabilizer Configurations:
- Linear Dual Stabilizers – 8610-02 plus your choice of FOX IFP, FOX TS, FOX ATS, KING 2.0 steering stabilizers
- Single Tie Rod Mount Stabilizer – 8603-02 plus your choice of FOX IFP, FOX TS, FOX ATS, KING 2.0 steering stabilizers
- Stock Drag Link Mount Location – Select your choice of FOX IFP, FOX TS, FOX ATS, KING 2.0 steering stabilizers
Installation Instructions 8600-01
Installation Instructions 8602-11
