Description
- SparkFun SSOP to DIP Adapter – 28-Pin
- Converts SSOP packages to DIP format
- Supports up to 28 pins with 0.65mm pitch
- Accommodates 0.025″ pitch devices
- Fits lead spans from 0.230″ to 0.350″
- Suitable for diverse applications

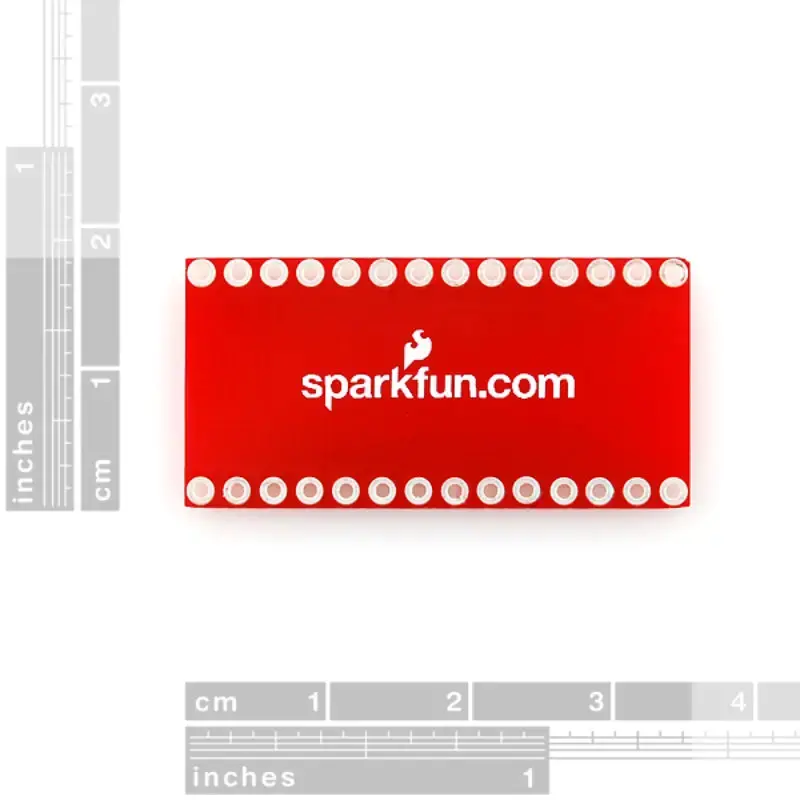

The SparkFun SSOP to DIP Adapter – 28-Pin is a versatile breakout board designed to convert SSOP packages to DIP format, accommodating various pin counts up to 28. It supports devices with a 0.65mm pitch and can also fit 0.025″ pitch devices, effectively handling lead spans from 0.230″ to 0.350″. This adapter is compatible with standard SSOP 0.65mm and 0.635mm pitch devices, making it suitable for a wide range of applications.
Note: Ensure proper handling to avoid damage to delicate components.
- 1x SparkFun SSOP to DIP Adapter – 28-Pin
Website
- SparkFun SSOP to DIP Adapter 28-Pin – GitHub Repository
ZIP File
- SparkFun SSOP to DIP Adapter – 28-Pin – ZIP Datasheet
- Usable with pin counts up to 28
- Designed for devices with 0.65mm pitch
- Compatible with devices having a 0.025″ (~0.635mm) pitch
- Accommodates packages with lead spans from .230″ to .350″
- Pad layout suitable for all standard SSOP devices with 0.65mm and 0.635mm pitches
