Description

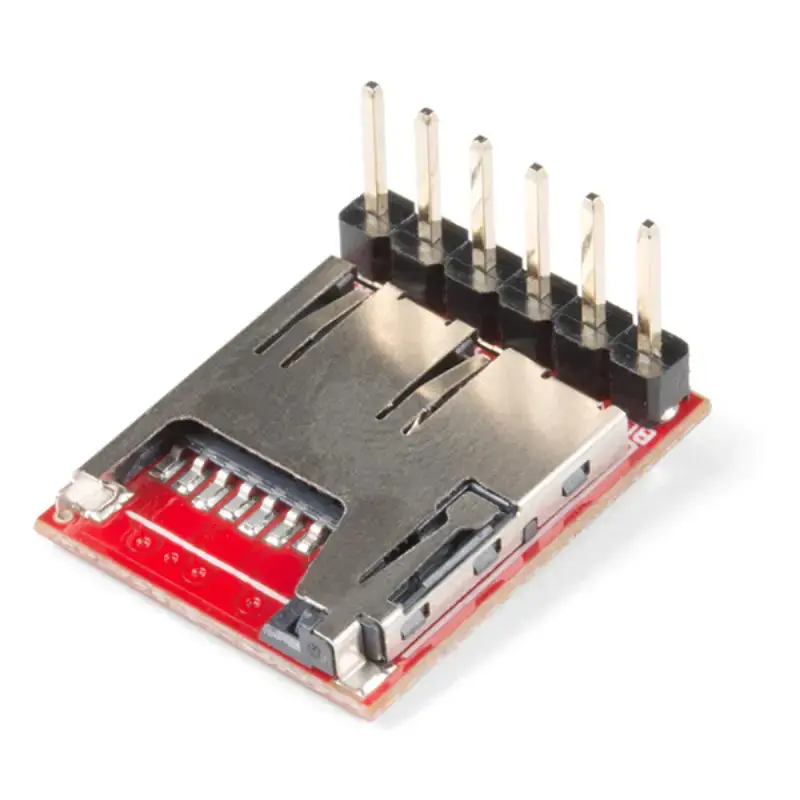

- SparkFun OpenLog w/ Headers
- Operates via a simple serial connection
- Supports microSD cards up to 64GB
- Serves as a black box for data logging
- Uses an ATmega328 running at 16MHz
- Includes pre-soldered headers for convenience
The SparkFun OpenLog w/ Headers is an open-source data logger that operates via a simple serial connection and supports microSD cards up to 64GB. It can store extensive amounts of serial data, serving as a black box for scientific or debugging purposes. This version includes pre-soldered headers for added convenience. The device uses an ATmega328 running at 16MHz and draws 2-3mA in idle mode, increasing to 10-20mA during full recording, depending on the microSD card. Data is stored on microSD cards ranging from 512MB to 32GB, supporting both FAT16 and FAT32 formats.
- 1x SparkFun OpenLog w/ Headers
Websites
- SparkFun OpenLog with Headers – Hookup Guide
- SparkFun OpenLog with Headers – GitHub
- SparkFun OpenLog with Headers – Tutorials
- SparkFun OpenLog with Headers – Hardware Overview
PDF File
- SparkFun OpenLog w/ Headers – PDF
ZIP File
- SparkFun OpenLog w/ Headers – ZIP
- Utilizes an ATmega328 operating at 16MHz
- Consumes approximately 2-3mA in idle mode
- Consumes 10 to 20mA during full recording, varying with the microSD card
- Compatible with microSD cards ranging from 512MB to 32GB
- Supports FAT16 and FAT32 SD formats
