Description

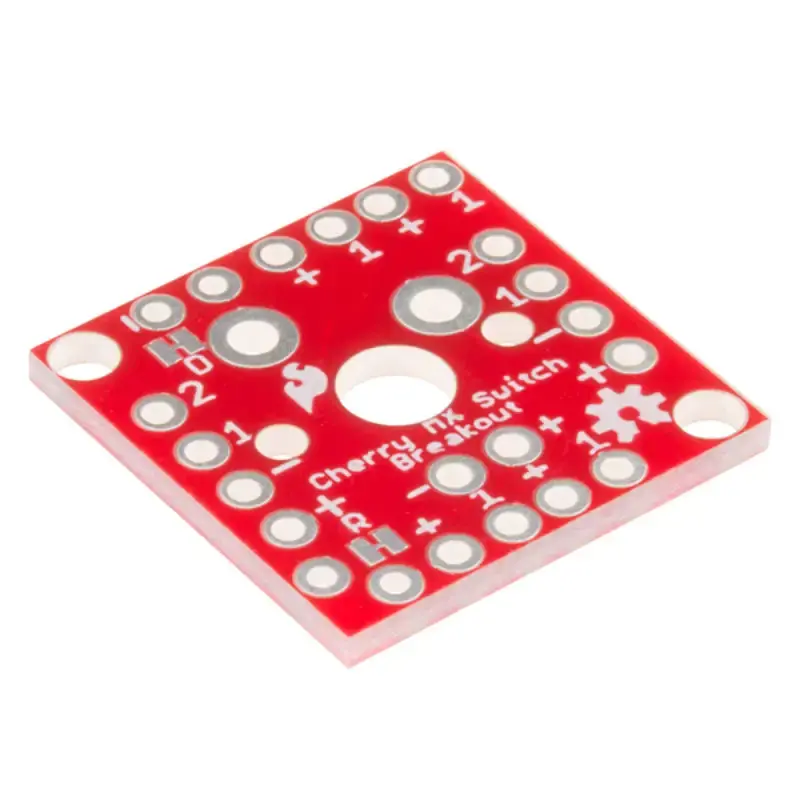

- SparkFun Cherry MX Switch Breakout
- Facilitates integration of Cherry MX Keyswitches
- Ideal for prototyping from single-key to 101-key keyboards
- Provides breadboard-compatible headers and LED access
- Supports keyboard matrix configurations
- Reliable for tens-of-millions of key presses
The SparkFun Cherry MX Switch Breakout facilitates the integration of Cherry MX Keyswitches into breadboard or perfboard-based projects. It is an ideal prototyping tool for applications ranging from single-key user inputs to fully-custom 101-key keyboards. This breakout board not only provides breadboard-compatible headers for the switch contacts but also offers access to an optional switch-mounted LED. Additionally, it supports keyboard matrix configurations, allowing for the interconnection of multiple boards while minimizing I/O-pin requirements.
- 1x SparkFun Cherry MX Switch Breakout
Websites
- Cherry MX Switch Breakout – Hookup Guide
- Cherry MX Switch Breakout – GitHub Repo
- Cherry MX Switch Breakout – Assembly Tips
ZIP File
- SparkFun Cherry MX Switch Breakout – ZIP Datasheet
- Provides a satisfying “clicky” feedback
- Reliable for tens of millions of key presses
- Compatible with breadboard or perfboard-based projects
- Includes access to an optional switch-mounted LED
- Suitable for keyboard matrixing applications
