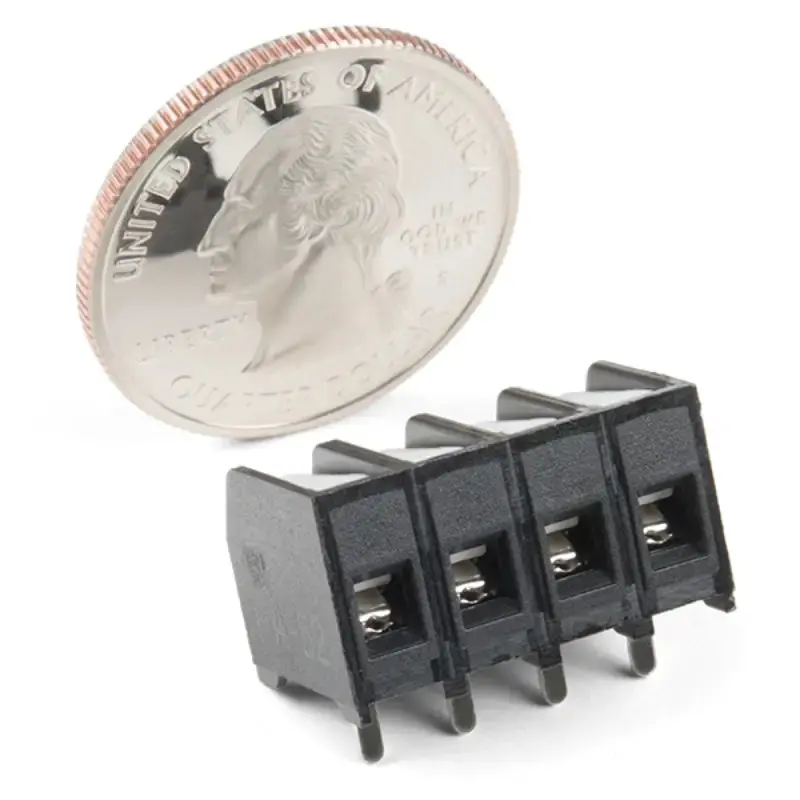

SparkFun 5 mm Pitch Latch Terminal Block – 4-Pin Connector

Description

Description

• Sparkfun Latch Terminals – 5mm Pitch (4-Pin)
• Eliminates the need for a screwdriver
• Handles up to 250V at 11A per pin
• Fits standard 0.19″ spacing
• Accepts 18-22AWG wire
• 4-pin latch terminal with 5mm pitch

The Sparkfun Latch Terminals – 5mm Pitch (4-Pin) eliminate the need for a screwdriver. Each pin, rated up to 250V at 11A, aligns with standard 0.19″ spacing. The terminals accommodate 18-22AWG wire, though the 1.20mm OD pins may require larger holes on some boards.

View moreWhat’s Included

• 1x Sparkfun Latch Terminals – 5mm Pitch (4-Pin)

Specifications

• 4-pin latch terminal
• 5mm pitch between pins
• Each pin supports up to 250V at 11A
• Standard 0.19″ pin spacing
• Pin thickness of 1.20mm OD
• Compatible with 18-22AWG wire
