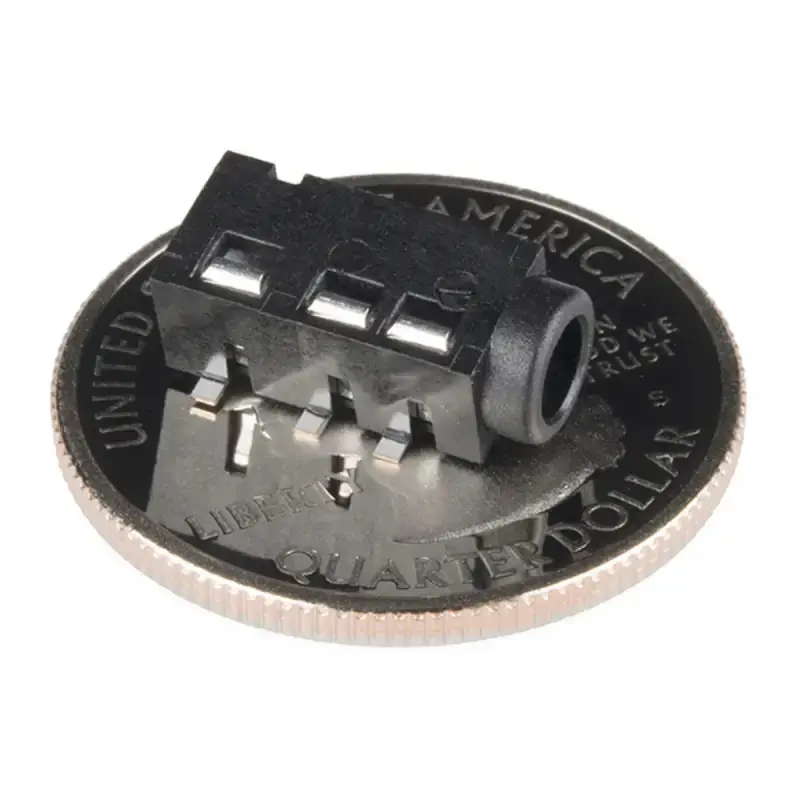

SparkFun 3.5mm TRRS Audio Jack – Surface-Mount Stereo Connector

Description

Description

• Sparkfun Audio Jack – 3.5Mm TRRS (SMD)
• Features TRRS with three conductors and a ground
• Supports microphone for hands-free headsets
• Transmits video signals in certain MP3/MP4 players
• Offers versatile audio connector for various devices

The Sparkfun Audio Jack – 3.5mm TRRS (SMD) is a versatile audio connector commonly found on phones, MP3 players, and development boards. TRRS, which stands for “tip, ring, ring, sleeve,” features three conductors and a ground, unlike standard stereo connectors. This additional conductor can be utilized for a microphone in hands-free headsets or to transmit video signals in certain MP3/MP4 players.

View moreWhat’s Included

• 1x Sparkfun Audio Jack – 3.5Mm TRRS (SMD)

Links

Website

• Audio Jack 3.5mm TRRS (SMD) – Tutorials

ZIP Files

• Sparkfun Audio Jack – 3.5Mm TRRS (SMD) – Sketchup
• Sparkfun Audio Jack – 3.5Mm TRRS (SMD) – STL
• Sparkfun Audio Jack – 3.5Mm TRRS (SMD) – Blender
• Sparkfun Audio Jack – 3.5Mm TRRS (SMD) – Solidworks

Specifications

• 3.5mm TRRS SMD audio jack
• Includes three conductors and a ground
• Suitable for audio, microphone, or video signals
