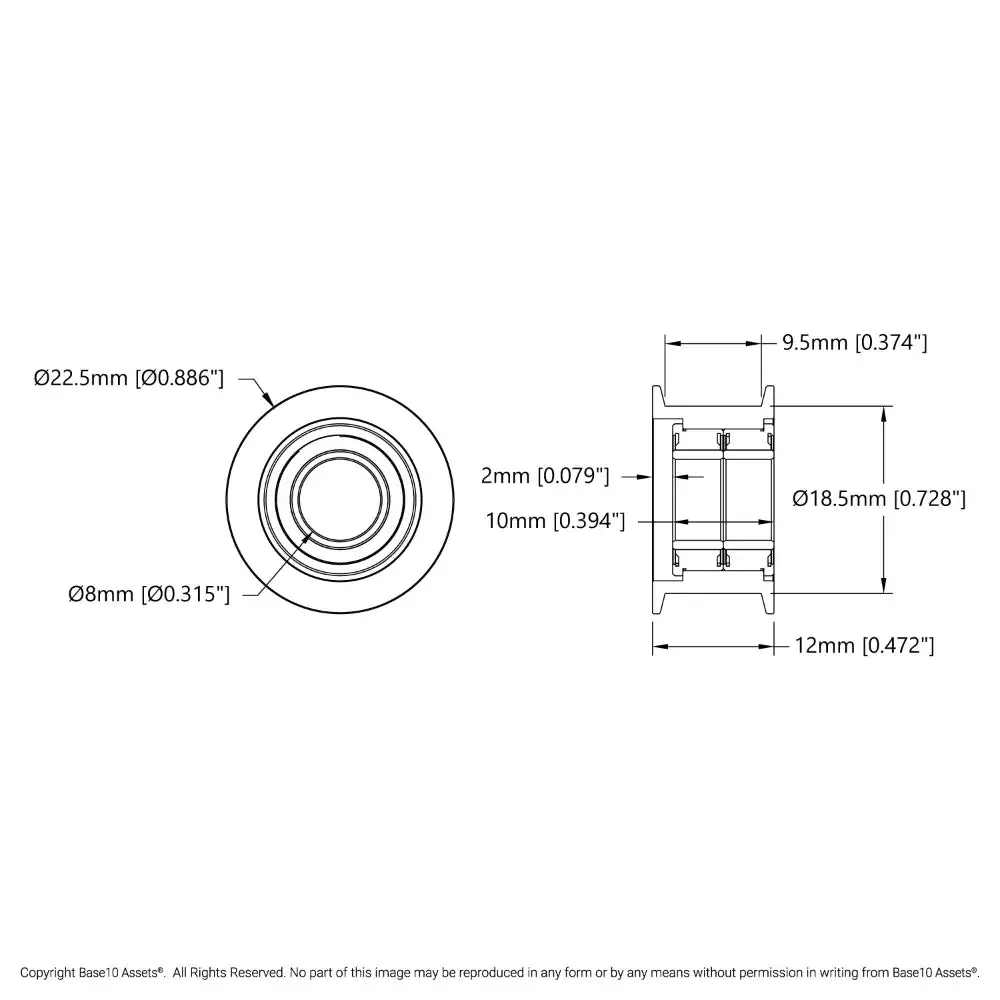

- ServoCity Dual-Bearing Timing Belt Idler Pulley (8mm Bore, 18.5mm Diameter, 9.5mm inside Width)
- Engineered with dual 8mm round bore bearings
- Adjusts tension and direction of timing belt
- Features smooth surface for optimal belt movement
- Includes flanges for secure belt positioning
- Ensures smooth rotation under axial loads
The ServoCity Dual-Bearing Timing Belt Idler Pulley (8mm Bore, 18.5mm Diameter, 9.5mm inside Width) is engineered with dual 8mm round bore bearings and a polycarbonate pulley. It is designed to adjust the tension and direction of a timing belt when mounted on an 8mm shaft or standoff. The pulley features a smooth surface for optimal belt movement and flanges for secure belt positioning. The bearings ensure smooth rotation even under axial loads, with one bearing flush and the other recessed for varied offsets.
- 1x ServoCity Dual-Bearing Timing Belt Idler Pulley (8mm Bore, 18.5mm Diameter, 9.5mm inside Width)
- Bore: 8 mm
- Diameter: 18.5 mm
- Inside Width: 9.5 mm
ZIP File
- ServoCity Dual-Bearing Timing Belt Idler Pulley (8mm Bore, 18.5mm Diameter, 9.5mm inside Width) – STEP File
- Material: Polycarbonate plastic idler with high-carbon steel bearings
