- iFlight XING 0803 FPV Motor 17000KV
- Features a compact and lightweight design
- Engineered with N52H curved magnets
- Optimized for 1S input voltage
- Ensures smooth operation with NSK bearings
- Suitable for high-speed micro drone applications
The iFlight XING 0803 FPV Motor 17000KV is a high-performance brushless motor designed for FPV drones. It features a compact and lightweight design, making it ideal for micro drone applications. The motor is engineered with a segmented bell rotor and N52H curved magnets, ensuring efficient power delivery and smooth operation. Its single strand copper winding and NSK bearings contribute to its durability and reliability. This motor is optimized for 1S input voltage, providing a peak current of 4.11A and a maximum power output of 16.4W, making it suitable for high-speed flight.
- 1x XING NANO 0803 Brushless Motor
- 1x Motor Screw Pack

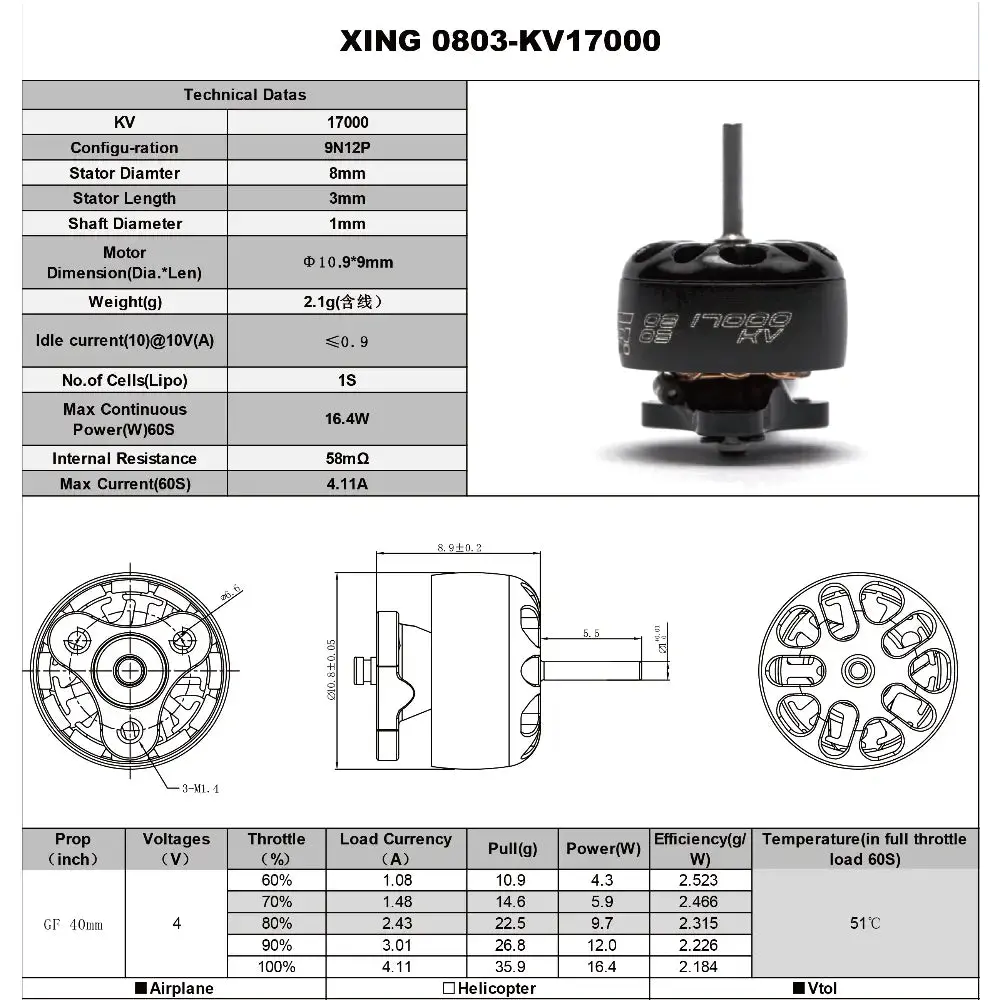

- Diameter: 10.9 mm
- Height: 9 mm
- Model: XING NANO 0803
- KV Rating: 17000KV
- Input Voltage: 1S
- Interphase Resistance: 58mΩ
- Peak Current: 4.11A
- Maximum Power: 16.4W
- Mounting Holes: 6 with a diameter of 1.4mm
- Rotor Design: Segmented Bell
- Shaft Diameter: 1mm
- Magnet Type: N52H Curved
- Configuration: 9N12P
- Bearing Type: NSK
- Winding: Single strand copper winding
