Description
Description

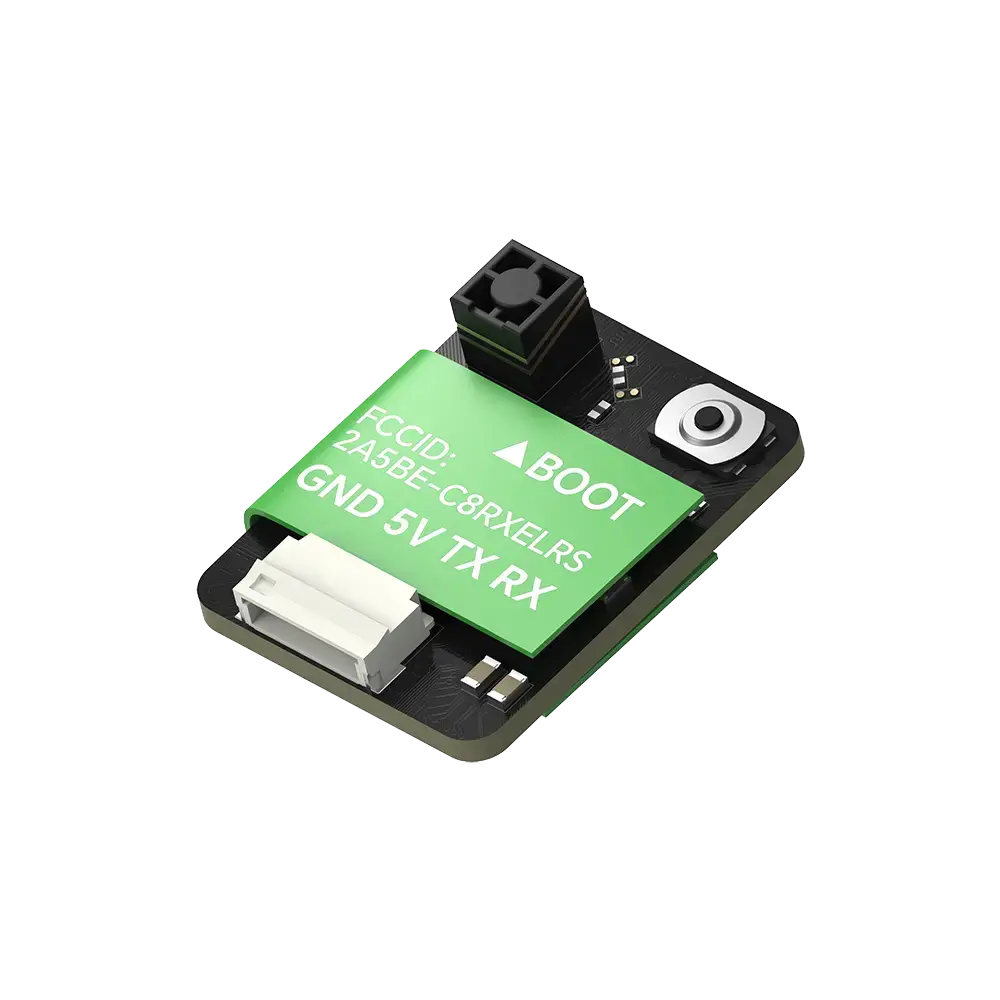

- iFlight ELRS 868/900 RX+70mm Mini Antenna
- Offers exceptional range and high packet rates
- Minimizes delays and reduces failsafes
- Features advanced circuit design for stability
- Operates on 900MHz and 2400MHz bands
- Provides long-range capabilities
The iFlight ELRS 868/900 RX+70mm Mini Antenna offers exceptional range and high packet rates, minimizing delays and reducing the risk of failsafes. Developed in collaboration with the ExpressLRS Team, it features an advanced circuit design and a Temperature Compensated Crystal Oscillator for enhanced frequency stability and reduced packet loss. Operating on both 900MHz and 2400MHz bands, it provides outstanding performance and long-range capabilities. The 900MHz band is optimized for FCC regions, while the 2400MHz band is suitable for any region, offering a packet rate up to 500Hz. Note: Install the antenna away from conductive or magnetic components.
- 1x ExpressLRS Nano Receiver
- 1x Antenna
- 10 x 13 mm
- Antenna connector: IPEX (868MHz/900MHz/2.4G)
- Firmware: ExpressLRS iFlight 900MHz Nano RX (868MHz/900MHz)
- Frequency bands: 868MHz EU/900MHz FCC
- Telemetry power: 17dBm (50mW 868/900MHz)
- Connector: SUR0.8
- Interface: RX TX 5V GND
- Input voltage: 5V
- Protocol: CRSF
