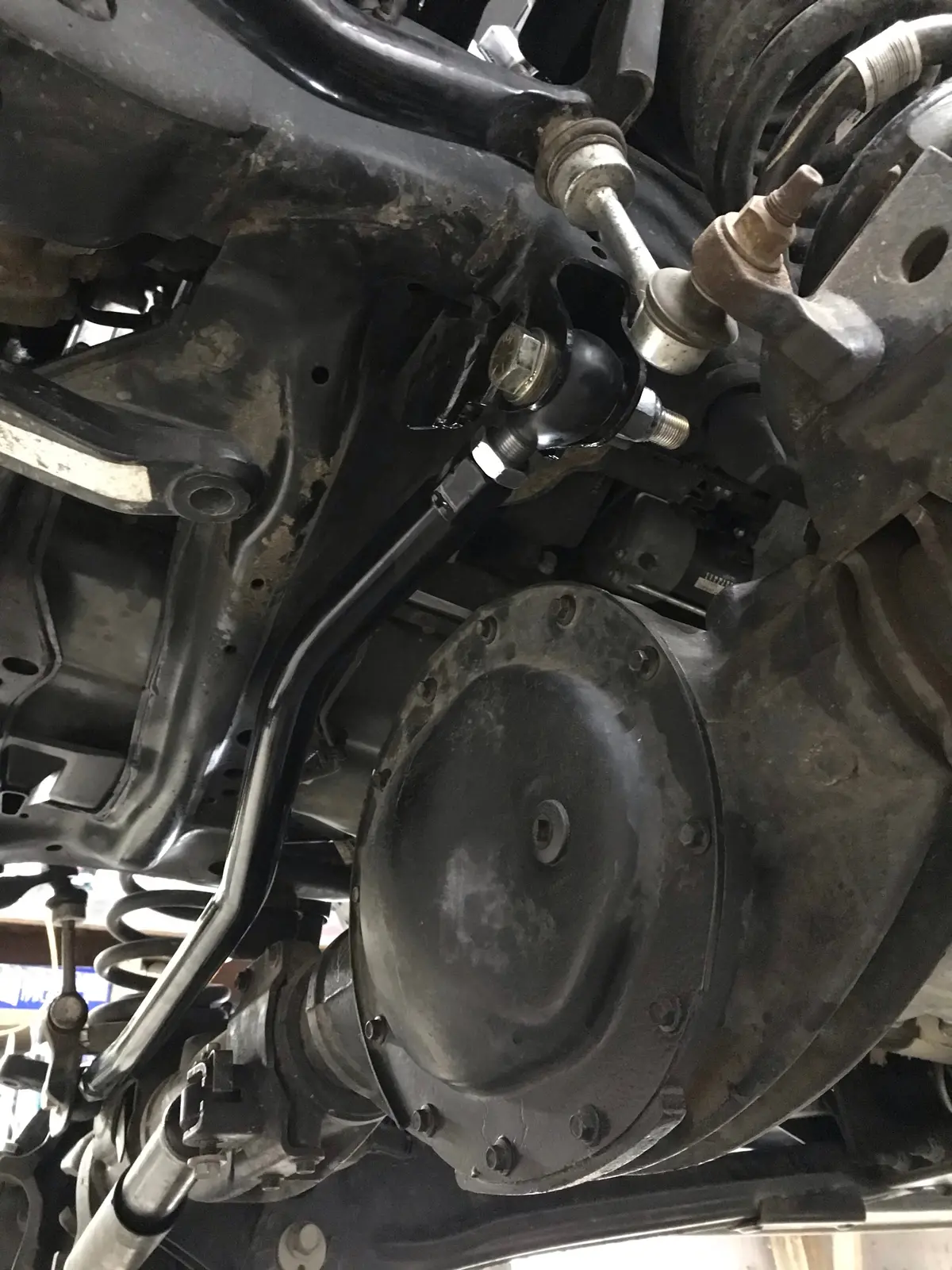

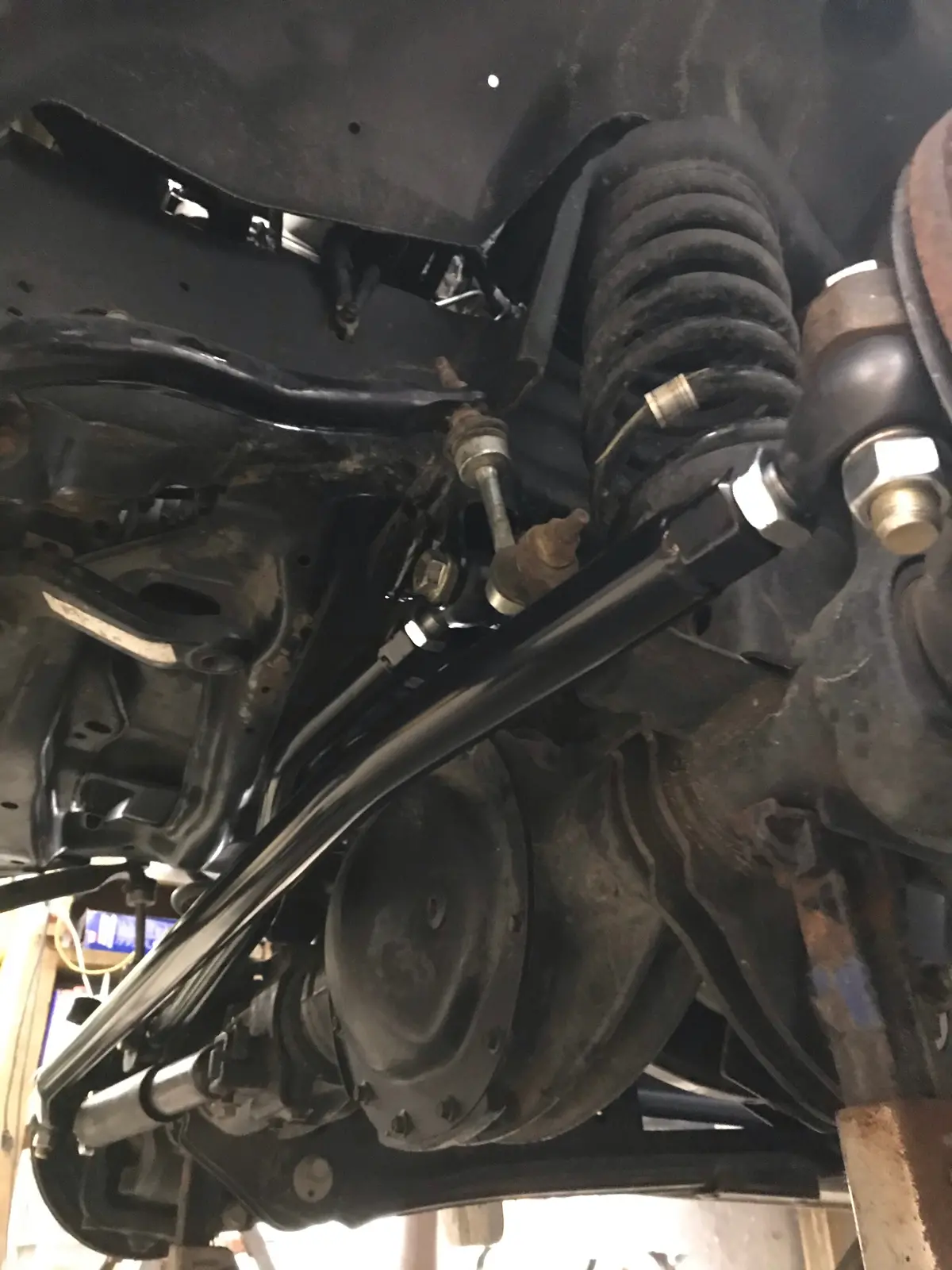

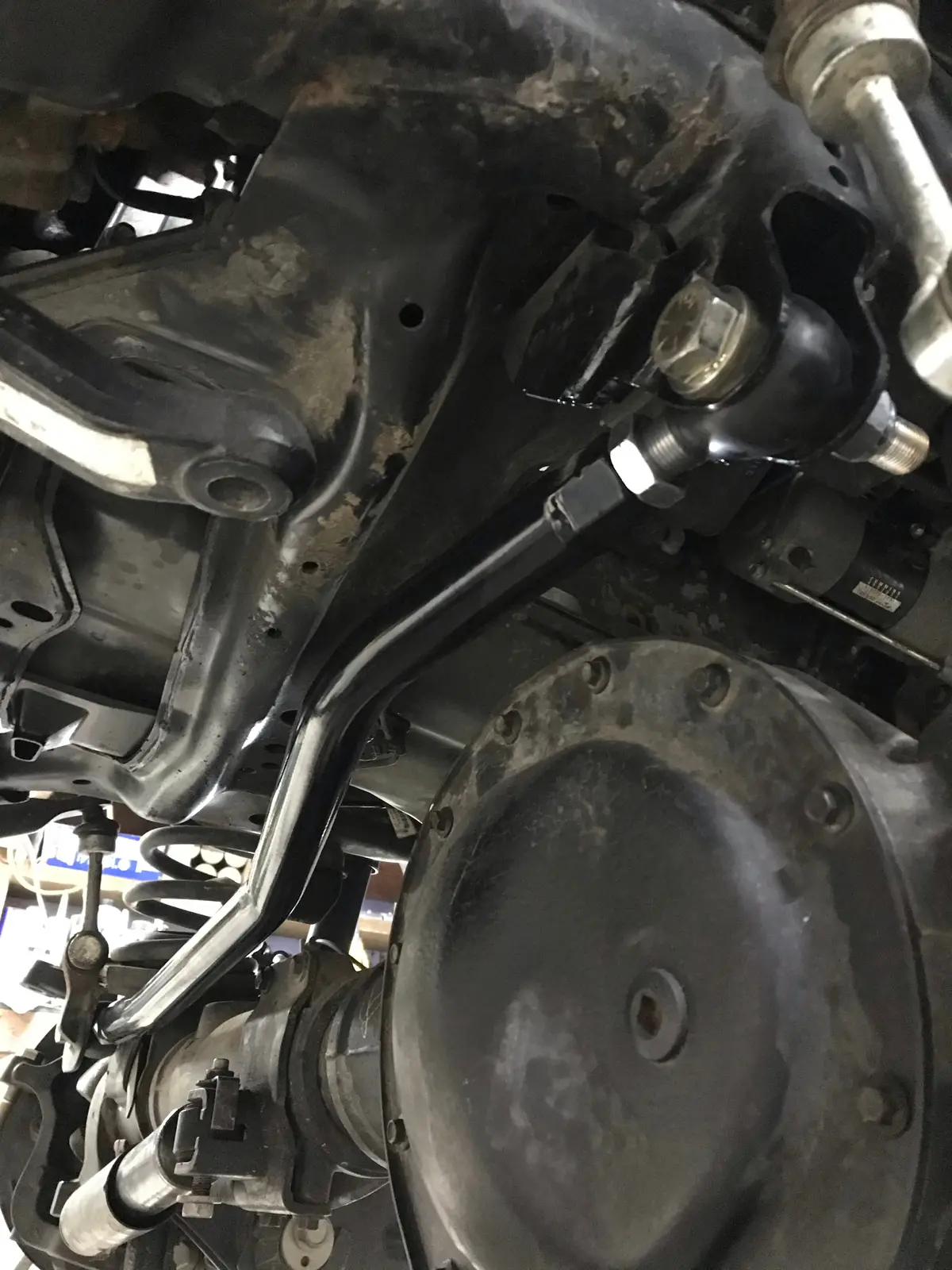

Heavy-Duty Adjustable Track Bar Kit for 2014–2020 Ram 2500 & 3500

• 1.5″ .250 Wall DOM Tube — significantly stronger than factory, built to handle off-road abuse and heavy front-end loads.
• 7/8″ Heim Joint Rod Ends — replace the wear-prone OEM-style tie rod ends for tighter, longer-lasting steering feel.

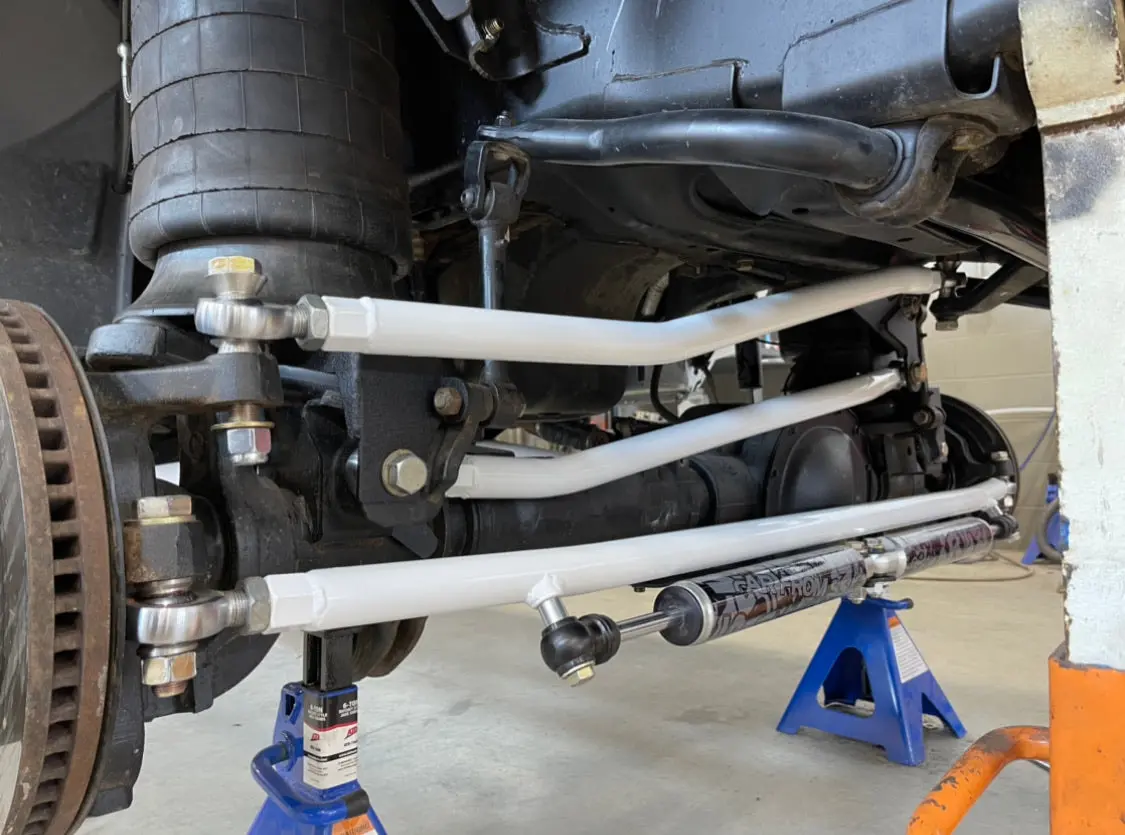

• Works at Stock Height Through 10″+ of Lift — designed for stock to 4″ lifted/leveled trucks out of the box. Add the optional drop bracket (sold separately) for 5″–10″+ lift or adjustable suspension setups like our long travel air kit.
• Engineered Drop Bracket Design — uses a wider-than-stock mounting width at the rod end for greater misalignment capacity, better differential clearance, and reduced rod-end binding and premature wear.
• Bump-Steer-Free Travel — when paired with the drop bracket, the system allows full suspension travel without bump steer across the entire driveable height range.

• Track Bar: Fits all 2014–2018 Ram 2500 & 3500. 2019–2020 models require a minor track bar bracket clearance modification.
• Compatible Models: Includes Mega Cab and Power Wagon.

• Requires drilling knuckles to a straight 3/4″ hole (reamer tool recommended).
• Must have original pitman arm and passenger knuckle.
• Includes mount for stock stabilizer in stock location.
• Finished in black wrinkle powder coat — custom powder coating options available.
• Optional rubber boots available separately (recommended for areas with road salt and brine).
• Options for stabilizer mount upgrades available.

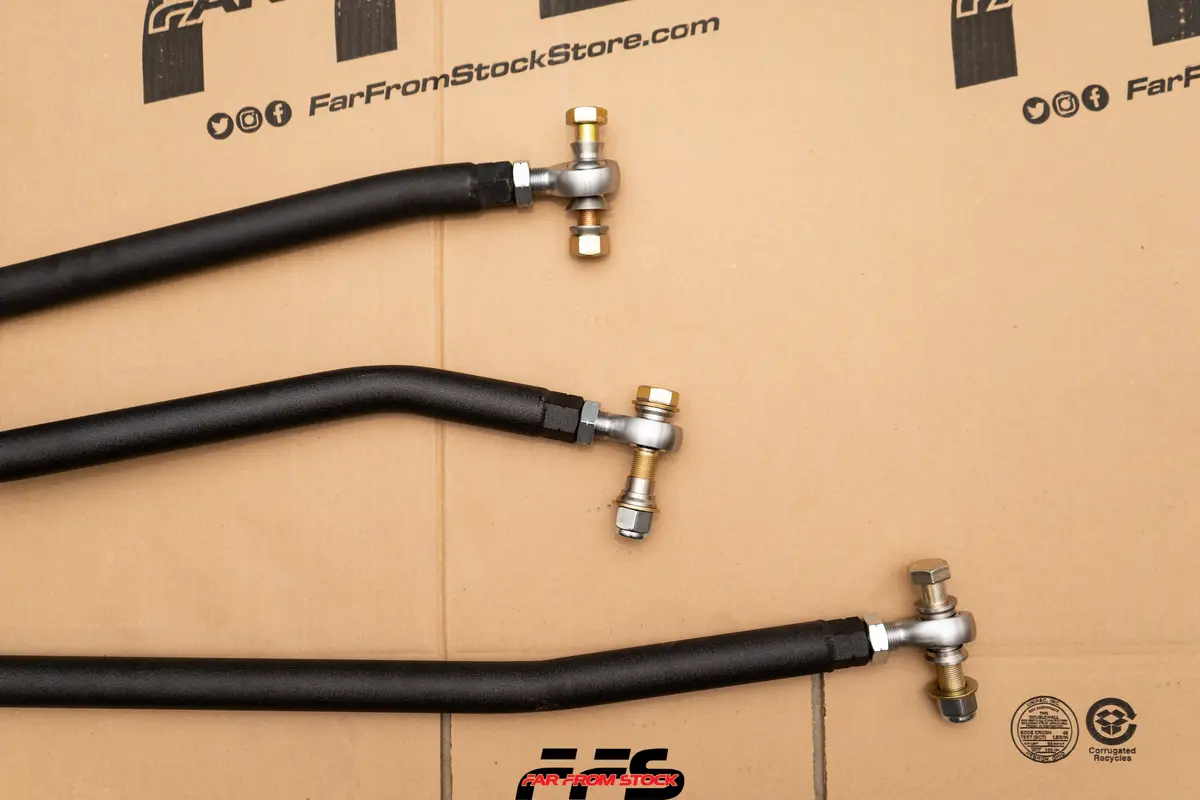

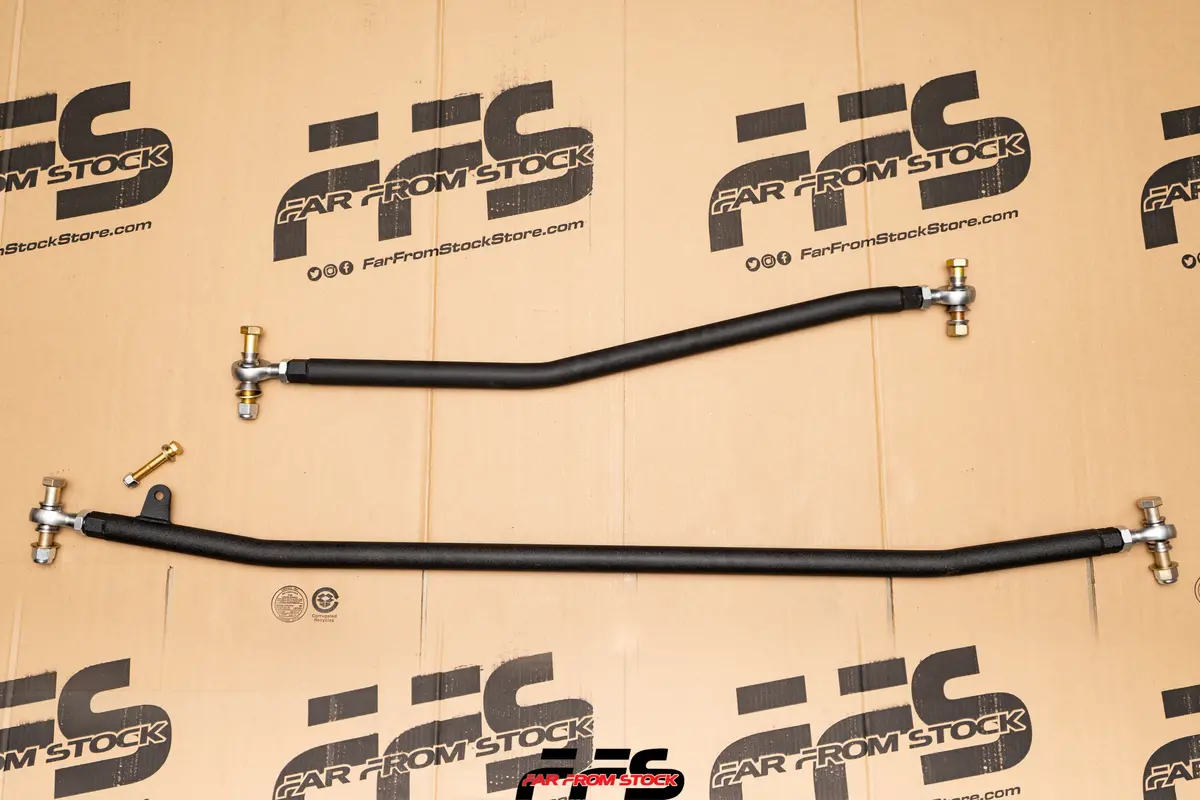

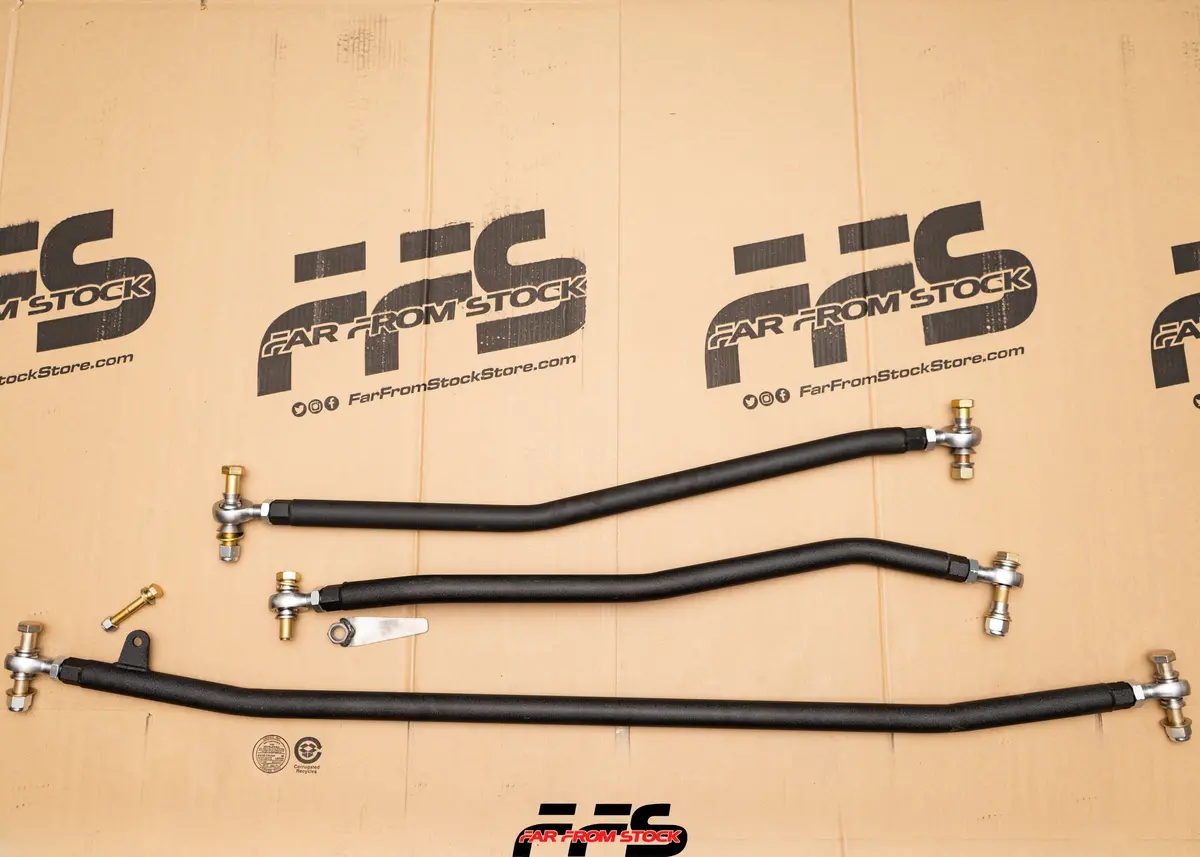

• Qty (1) — Adjustable Track Bar
• Qty (1) — Stock Frame Bracket (substitutions listed below for lifted applications using the drop bracket)

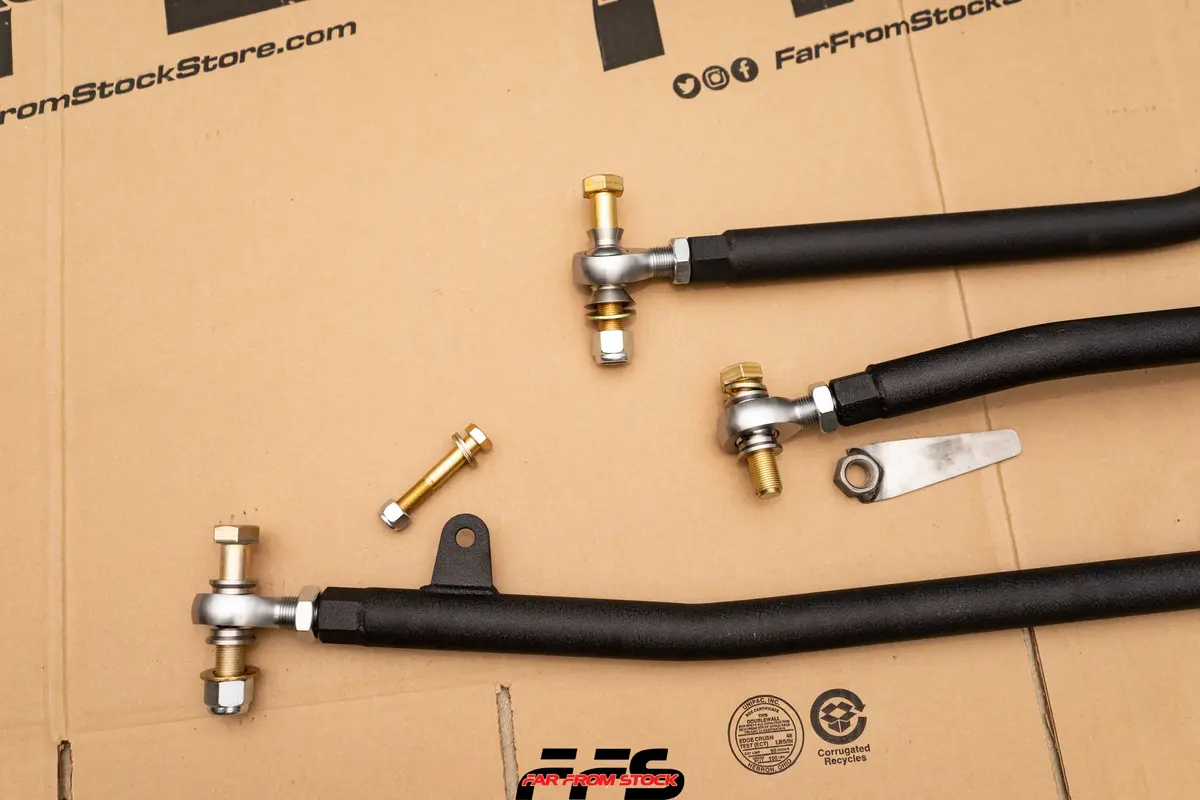

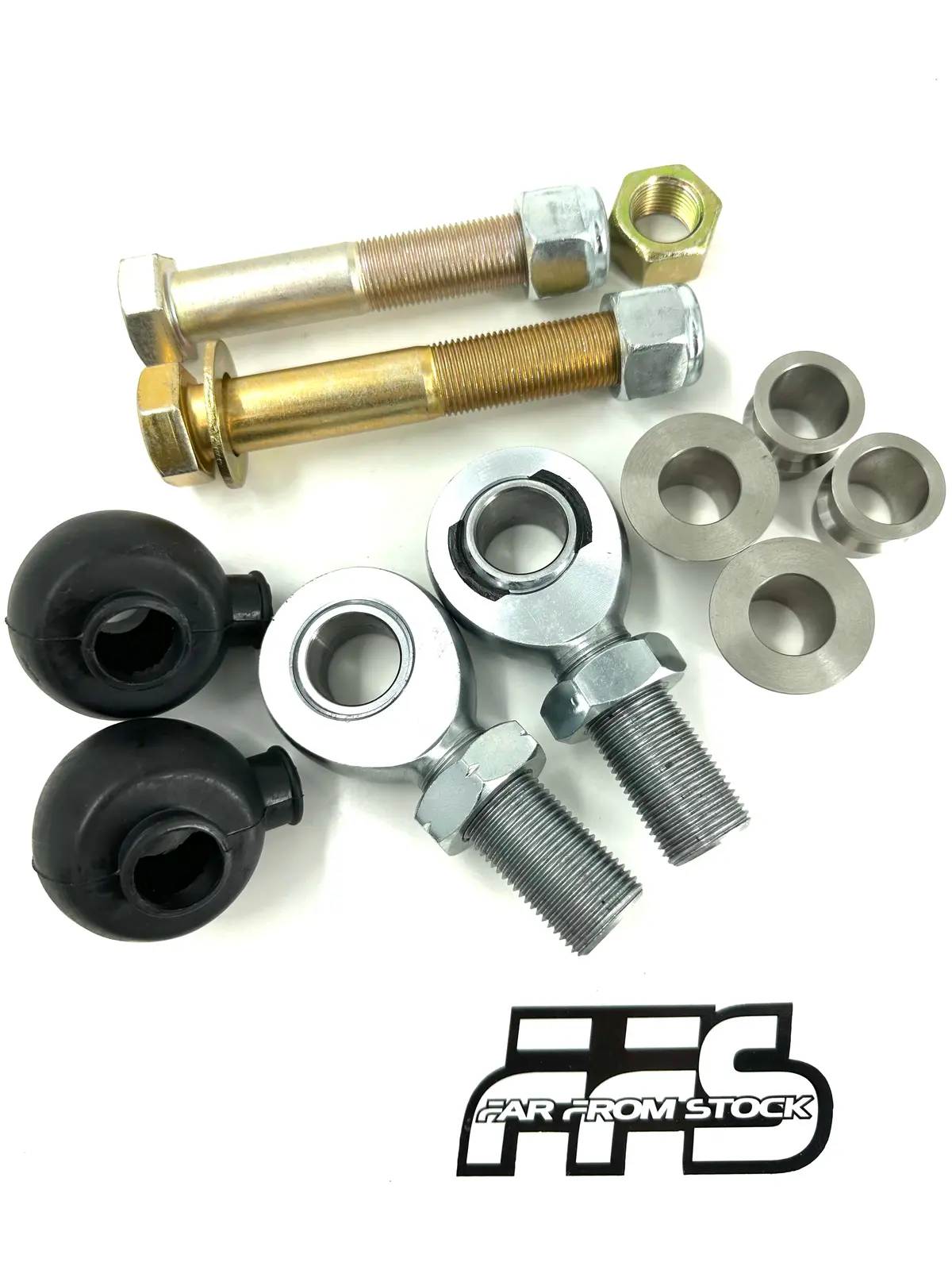

• Qty (2) — 7/8″ x 7/8″ Left & Right Rod Ends w/ Jam Nuts
• Qty (4) — 3/4″ Narrow Misalignment Spacers (sub two standard-width for lifted drop bracket)
• Qty (1) — 3/4″ x 3″ Fine Thread Bolt
• Qty (1) — 3/4″ x 3.5″ Fine Thread Bolt (sub one 4″ bolt for lifted drop bracket; add one 7/16″ x 1-1/4″ bolt/nut set and one 1/2″ x 1-1/4″ bolt, lock washer, and long blind nut)
• Qty (2) — 3/4″ Washers
• Qty (1) — 3/4″ Lock Washer
• Qty (1) — 3/4″ Nylon Nut
• Qty (1) — 3/4″ Blind Nut w/ Tab

When using the drop track bar bracket for a lifted application (5″+ of lift), the drag link flips to the top side of the passenger knuckle. This means stock wheels cannot be used without wheel spacers in that configuration. If you’re running under 4″ of lift, this does not apply — stock wheels will clear without issue. Always test-fit during install and reach out if you have questions.
